amaran F22x 2x2 Bi-Color LED Flexible Mat (V-Mount) Overview

The amaran F22x is a powerful and versatile 2'x2' bi-color LED flexible fabric light designed for filmmakers, content creators, and photographers seeking a large, soft, and easily shapeable light source. Offering a wide color temperature range from 2500K to 7500K, the F22x provides exceptional flexibility for matching ambient light or creating specific moods. Its high CRI/TLCI of 95+/98+ ensures accurate color rendition for professional results. The lightweight and foldable design, along with its included softbox and grid, make it an ideal lighting solution for interviews, portraits, product photography, and more, both in the studio and on location.

Features

  • 200W Output 2’x2’ Bi-Color Flexible LED Mat
  • 240W Max Power Draw
  • 6,960+ lux @ 1 meter (5600K)
  • Tunable CCT from 2,500K to 7,500K
  • CRI: 95+, TLCI: 98+, CQS: 96+, SSI (Tungsten): 81+, SSI (D56): 72+

BI-COLOR FLEXIBLE MAT

The amaran F22x is a 2’x2’ ultra-lightweight flexible LED mat that offers outstanding light output and color rendering for indie filmmakers, videographers, content creators, and photographers who need a versatile and flexible lighting solution.

2X2 FORM FACTOR

As an ultra-light, ultra-thin fabric light, the F22x is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a simple, soft light that can fold compactly, it is the perfect close-up key light. Its traditional 2’x2’ square form factor allows the F22x to provide ample surface area for an innately soft light, while still producing enough intensity to impact the scene.

OUTSTANDING LIGHT OUTPUT

With 200W of output power, the ultra-lightweight bi-color flexible panel produces unmatched strength, outputting 6,960+ lux at 1 meter. You can also tune the F22x’s high-output bi-color chipset over its wide CCT range from 2,500K to 7,500K to match a variety of white light environments, coupled with stepless dimming from 0 to 100%, frequency selection for tuning out flicker, and 9 built-in lighting FX.

ALL-NEW X BRACKET

The F22x now features a new and improved X Bracket that provides enhanced rigidity and security for your light mat. The X Bracket’s support tubes each have a 2-stage spring-loaded design, ensuring that the light mat is stretched taut and the bracket always stays attached. It is easy to set up and packs compactly, while also featuring an integrated knurled baby pin for easy mounting.

POWER SOLUTIONS

For creators looking for a compact and portable lighting solution with a seamless user experience, the F22x control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V/26V/28.8V/48V batteries. Full output can also be achieved using the AC power supply.

SOFT DIFFUSION

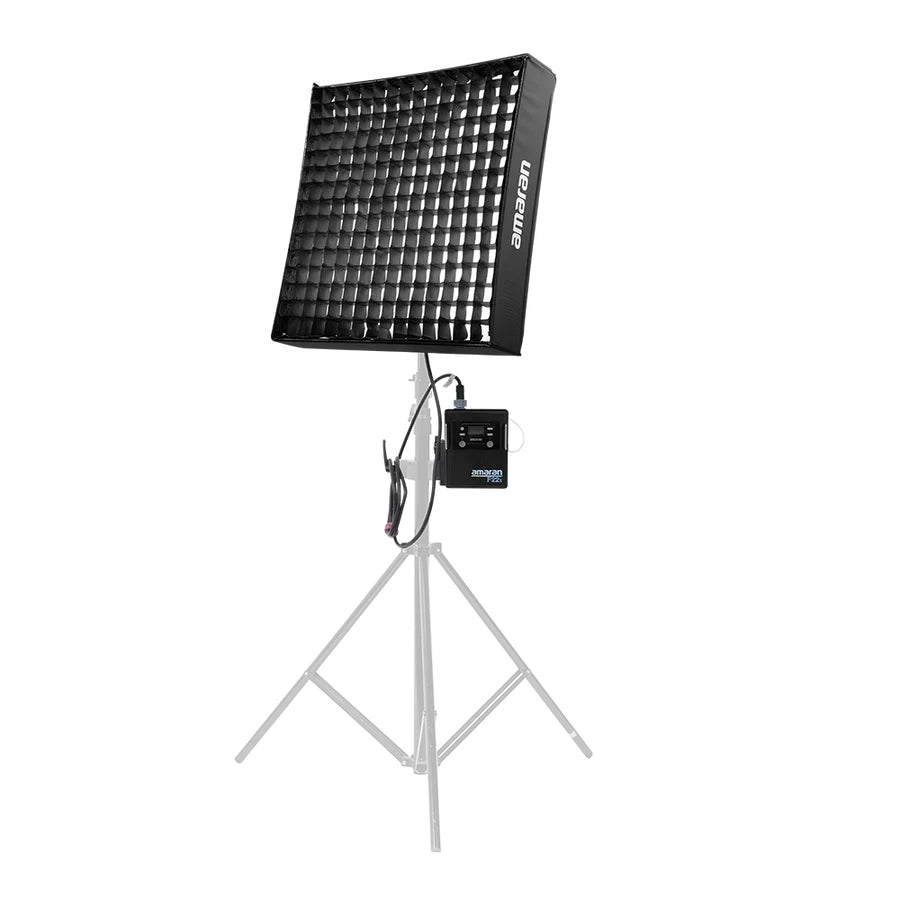

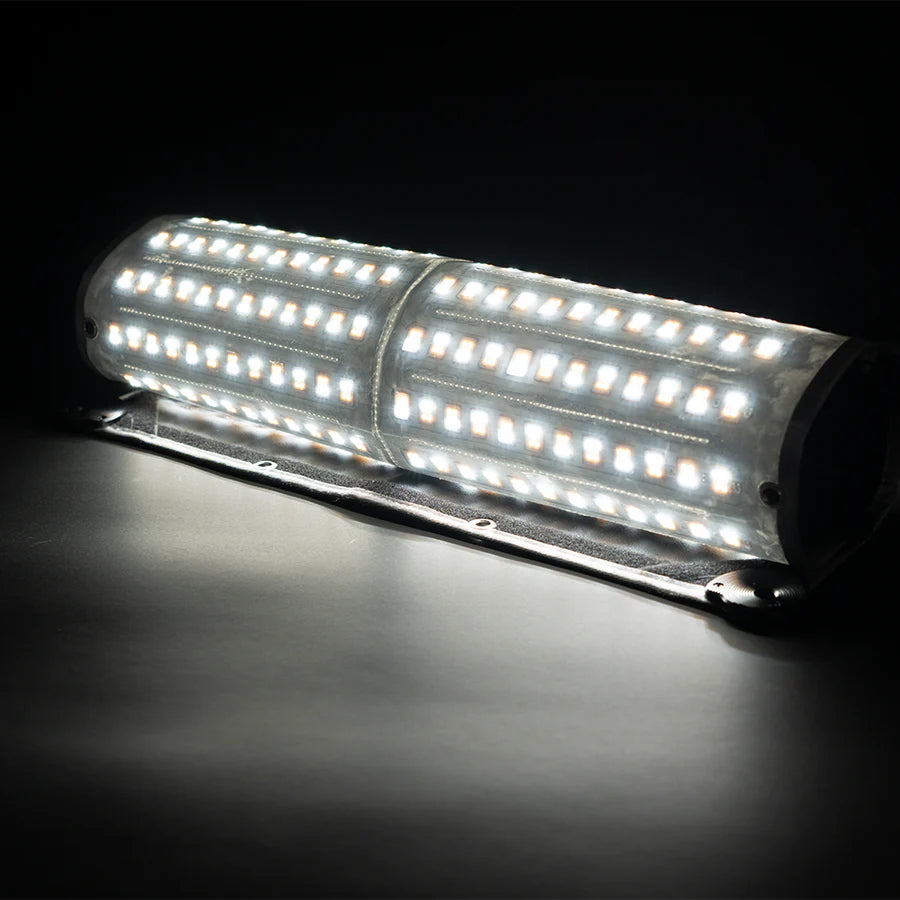

To add a beautifully controlled soft light to your scene, attach the included softbox, one of two strengths of diffusion cloths, or the included light control grid using the integrated hook-and-loop fabric to further finesse your lighting design. The F22x can also be combined with the amaran F22 Lantern with light control skirt to extend the fixture as a volumetric lantern or pancake light.

SIDUS LINK APP

For content creators who prefer wireless controls to spend more time behind or in front of the camera, the Sidus Link app will allow you to utilize tools unique to the Aputure and amaran ecosystems to control the F22x. With the Source Match, Color Picker, Gel Control and Custom FX functions all in the palm of your hand, choosing the perfect color for the scene has never been easier.

PROFESSIONAL CONTROLS

In addition to controlling your lighting design from Sidus Link, the F22x can be controlled externally via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter*, adding professional-level control to your favorite flexible light mat.

* USB-C to 5-Pin DMX512 In & Out Adapter sold separately.

#AmaranF22x #BiColorLED #FlexibleLight #AputureLighting #SoftLight #2x2LED #FilmmakingGear #ContentCreationTools #PortraitLighting #InterviewLighting.

Technical Specifications

CCT

2500K~7500K

CRI

≥95

TLCI

≥98

CQS

≥96

TM-30 RF (Average)

94

TM-30 RG (Average)

104

SSI (Tungsten)

≥81

SSI (D56)

≥72

Beam Angle

180°

Max Power Output

≤200W

Max Power Consumption

≤240W

Operating Current

5A

AC Power Supply

48V DC

D-Tap Battery

12-28.8V DC

Battery Compatibility

16.8V, 26V, 28.8V full power output

DC Input

(3m) DC Self-locking

AC Power Cable

Self-locking IEC C13 AC Power Cable (4m)

Operating Temperature

-10°C ~ 40°C / -4°F ~ 113°F

Control Methods

On-board, Sidus Link App, DMX

Connectivity

Bluetooth 5.0 (Sidus Mesh)

Bluetooth Operating Range

≥80m / 262.5ft

Firmware Upgradeable

Sidus Link OTA

Display Type

OLED

Fixture Cooling Method

Natural Dissipation

Control Box Cooling Method

Natural Dissipation

Umbrella Holder

Yes

Soft Box

Yes

Mounting

1/4-20in * 3, Tilting Support Column

Estimated LED Lifetime (L70)

50,000 Hours

Estimated Color Shift Over Lifetime (CCT)

2% over 6,000 Hours

Certifications

CE, FCC, cTUVus, KC, NCC, ROHS
