YoloLiv YoloBox Ultra Streaming Studio with Recorder
Regular price$1,790.00
Tax included.
Description

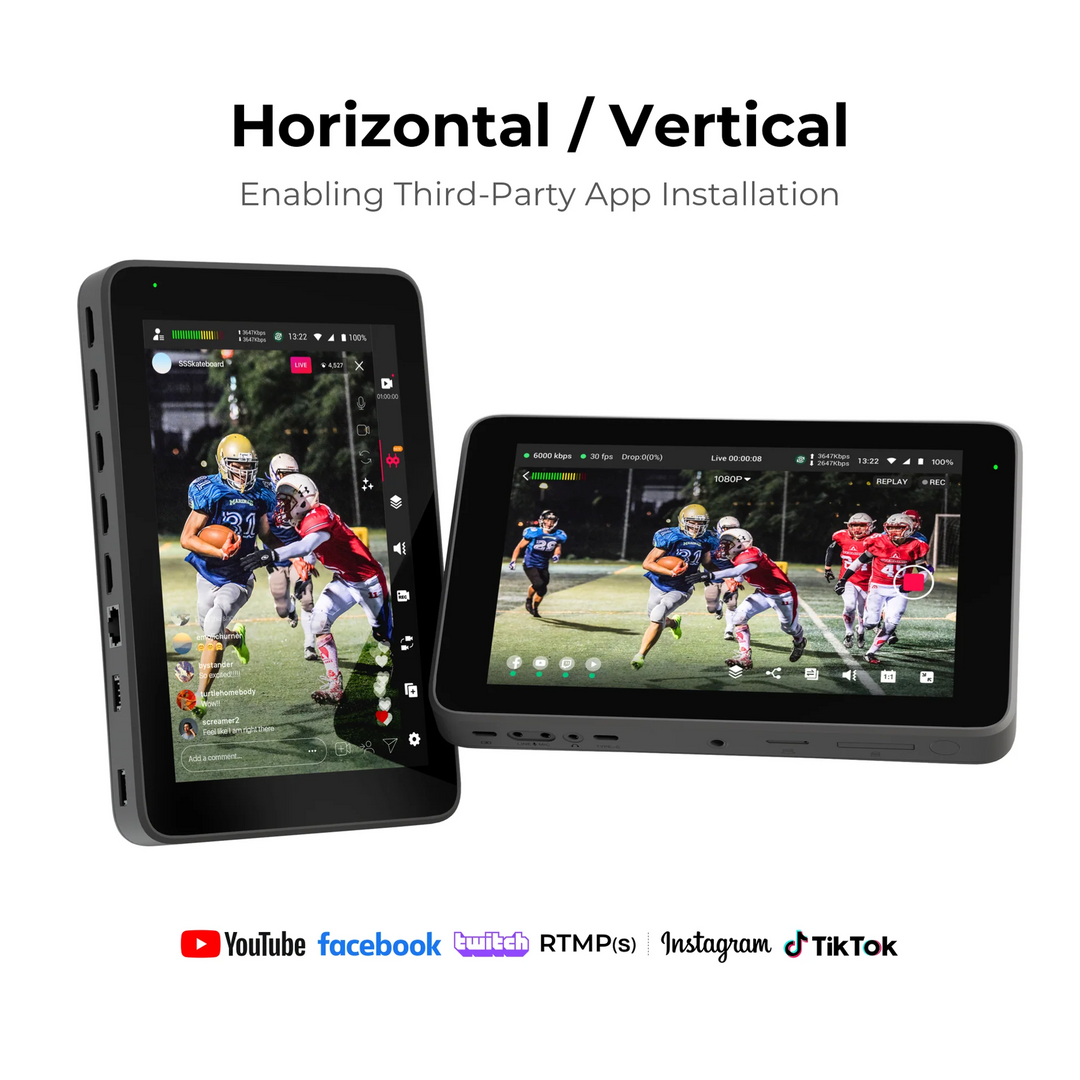

- Streaming Flexibility: YoloBox Ultra offers two modes—Live Streaming Mode for up to three horizontal destinations and Vertical Streaming Mode for two vertical destinations. However, simultaneous streaming in both modes is not supported
- 4K Live Broadcasting: A 4K HD device that functions as a switcher, monitor, encoder, and recorder, supporting 4G LTE, WiFi, Ethernet, and dual 4G Dongles. Ideal for events like sports, weddings, and church
- NDI and SRT Integration: Enhance your stream with improved quality, reduced latency, and remote production capabilities via NDI and SRT. (Additional charges apply)
- Cellular Bonding: Combine up to 5 network connections(2x USB Modems, 1x 4G LTE, 1x Wi-Fi, 1x Ethernet) to ensure uninterrupted streaming, even in challenging conditions. (Additional charges apply)
- ISO Recordings: Capture and save all video inputs separately with customizable resolution, frame rate, and bitrate, enabling better post-production control and quality
Exterior
Dimensions & Weight
Height: 27.1 mm
Width: 140 mm
Length: 219 mm
Weight: ≈ 981 g

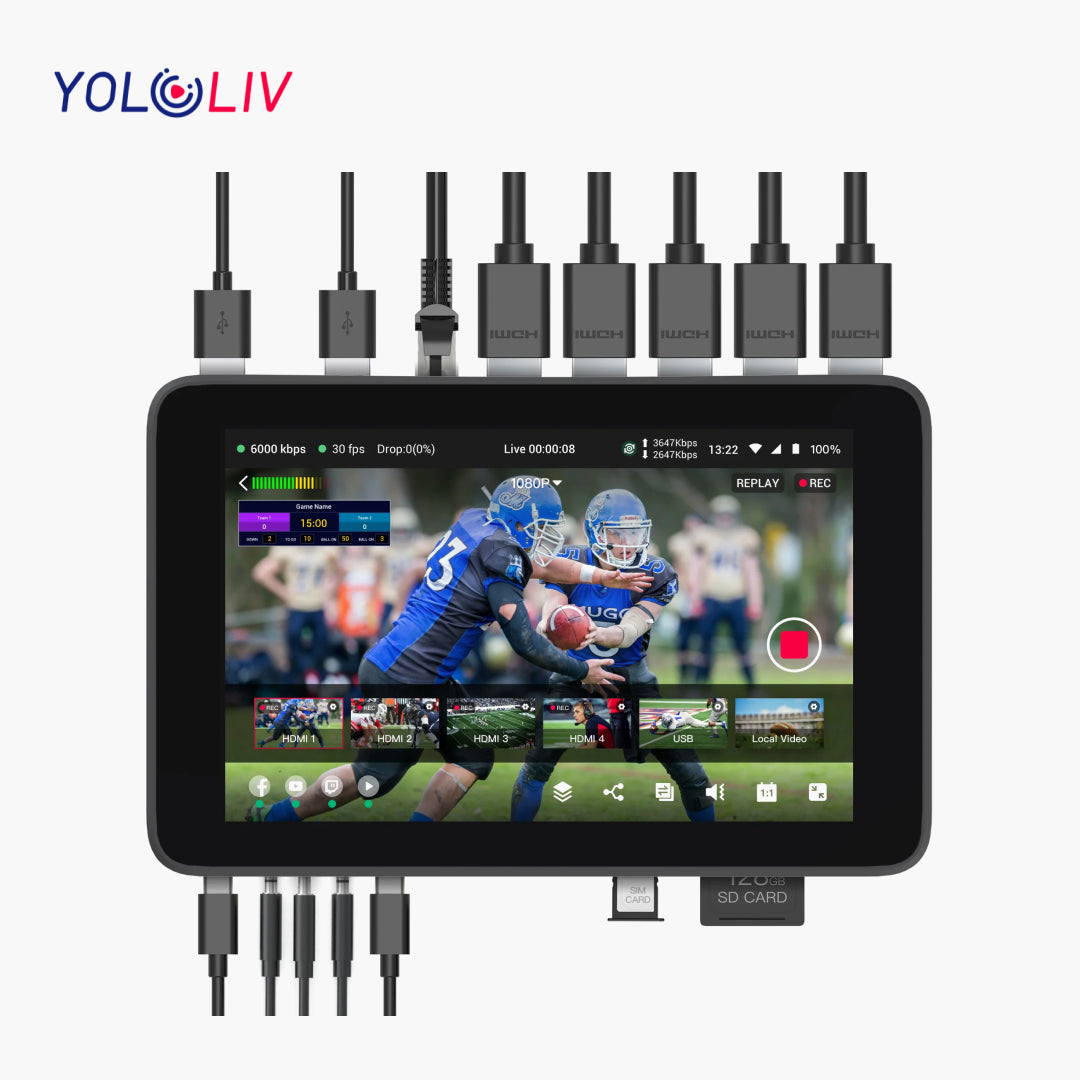

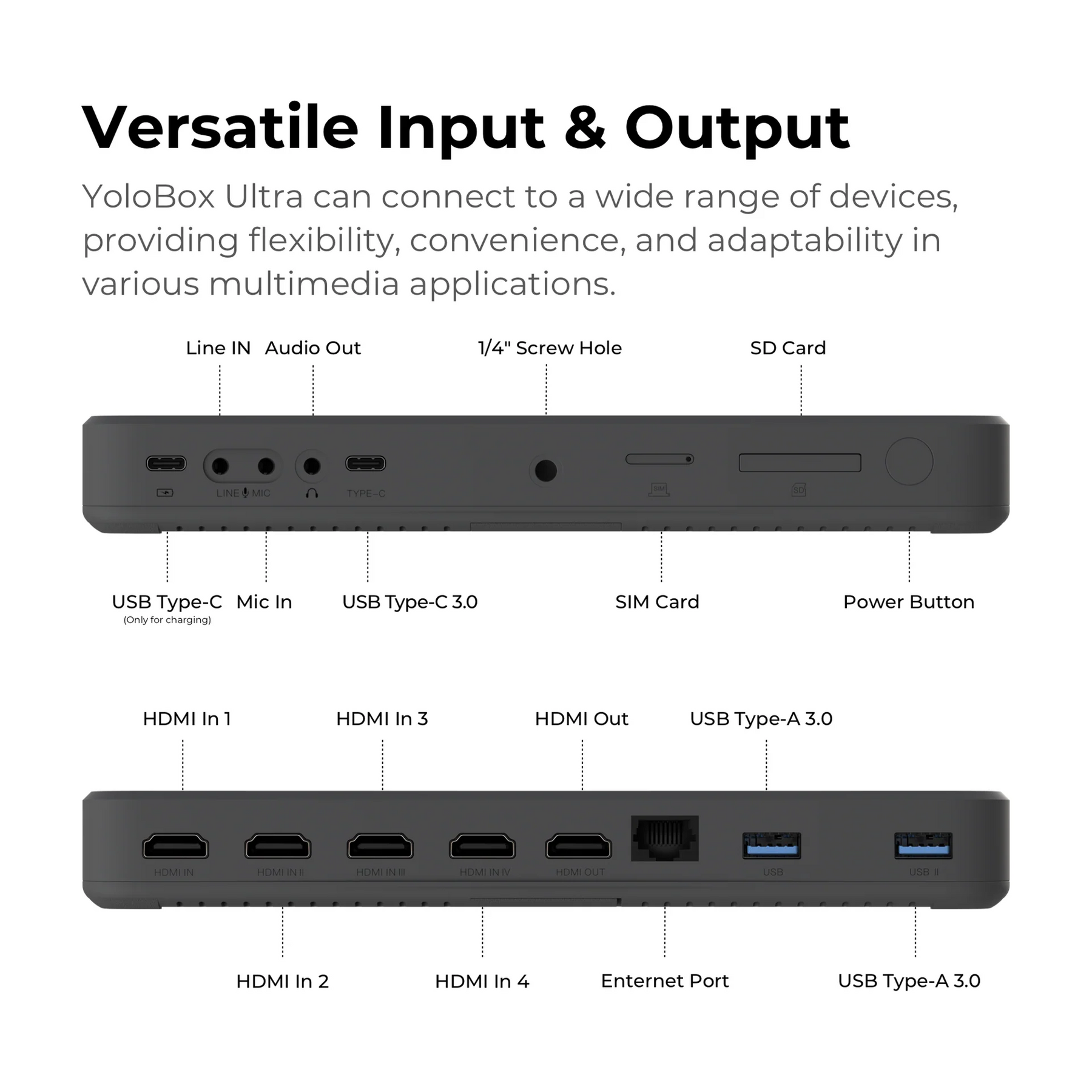

Ports
- HDMI IN 1: Video input
- HDMI IN 2: Video input
- HDMI IN 3: Video input
- HDMI IN 4: Video input
- HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
- ETHERNET PORT: Connect to Internet by Ethernet cable
- USB Type-A 3.0: Video input( Support: webcam; portable storage device ; wireless usb dongle.)
- USB Type-A 3.0: Video input( Support: webcam; portable storage device ; wireless usb dongle.)
- USB Type-C: Only for charging
- LINE IN(3.5mm): Stereo, connect to electric guitar or synthesizer
- MIC IN(3.5mm): Mono, connect to microphone for recording
- AUDIO OUT(3.5mm): Connect with monitor headphones
- EPA Tier 3
- EPA Tier 4
- EPA Regulations
- China National Standards
13. USB Type-C: A fully functional interface supports input
14. 1/4'' Screw Hole: Mount Ultra with camera
15. Nano-SIM Card Holder: Insert SIM card to connect to Internet
16. SD Card Holder: Used for recording and loading graphics
17. Power Button: Turn on and turn off
Specs
| Power | |
|---|---|
| Input Power | DC 5V / 9V / 12V / 15V |
| Power Consumption | 45W |
| Power Supply | USB Type-C |
| USB Rated Output | USB-A: 5V / 1A |
| Battery Capacity | 6800mAh |
| Display | |
| Monitor | 8-inch LCD Resolution: 1200 × 1920 Brightness: 650 nits Contrast Ratio: 1500:1 Viewing Angle: Full Viewing Angle NTSC: 80% |
| Video Input | |
| Local Video Inputs | HDMI, USB-A |
| Video Over Ethernet | RTMP, RTMPS, SRT |
| Video Input Connectors | HDMI, USB-A, RJ45, USB Type-C |
| Supported Aspect Ratios | 16:9, 4:3, 1:1 |
| Video Input Deinterlacing | No |
| Input Resolution | 480p / 720p / 1080p (up to 60fps) / 4K 30fps |
| Video Encoding | H.264, H.265 |
| Bitrate Control | CQ, VBR, CBR |
| Hardware Video Encoding | Optional |
| Video Output | |
| Output Signal Types | FLV-RTMP, HDMI, UVC |
| Output Connectors | HDMI OUT, USB-C |
| Streaming Protocols | RTMP, RTMPS, MJPEG, SRT |
| Output Resolution | 480p / 720p / 1080p (up to 60fps) / 4K 30fps |
| Audio | |
| Analog Audio Input | Line In, Mic In (3.5mm) |
| Digital Audio Inputs | USB, HDMI, RTMP (Internet), Local Video (SD Card) |
| Digital Audio Input Connectors | USB-A, HDMI, USB-C |
| Audio Mute | Yes |
| Audio Input Format | 32kHz / 44.1kHz / 48kHz, 16-bit |
| Audio Encoding | AAC, 44.1kHz / 48kHz, 2-Channel, 16-bit |
| Analog Audio Output | 3.5mm Headphone Jack |
| Digital Audio Outputs | Embedded HDMI Audio, Embedded USB Audio |
| Recording | |
| Record Format | MP4 |
| Connectivity | |
| Wi-Fi | 2.4GHz / 5GHz (Wi-Fi 6 Supported) |
| USB Standard | USB 2.0 & USB 3.0 |
| Ethernet | 10/100/1000Mbps, Half/Full Duplex Auto Detect |
| SIM Card | Nano-SIM |
| Storage | |
| Supported SD Card Formats | FAT32 (up to 128GB), NTFS, exFAT |
| 4G Network Support | |
| North America (US / Canada / Mexico) |
B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B41, B66, B71 |
| EMEA / India / Korea / Taiwan / South Asia / LATAM / Australia / New Zealand | B1, B3, B7, B8 |
| WCDMA Bands | B1, B8 |
| 4G LTE Bands | B1, B3, B7, B8 |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 15% – 85% (Non-Condensing) |
| Manufacturing | |
| Country of Origin | Made in China |
