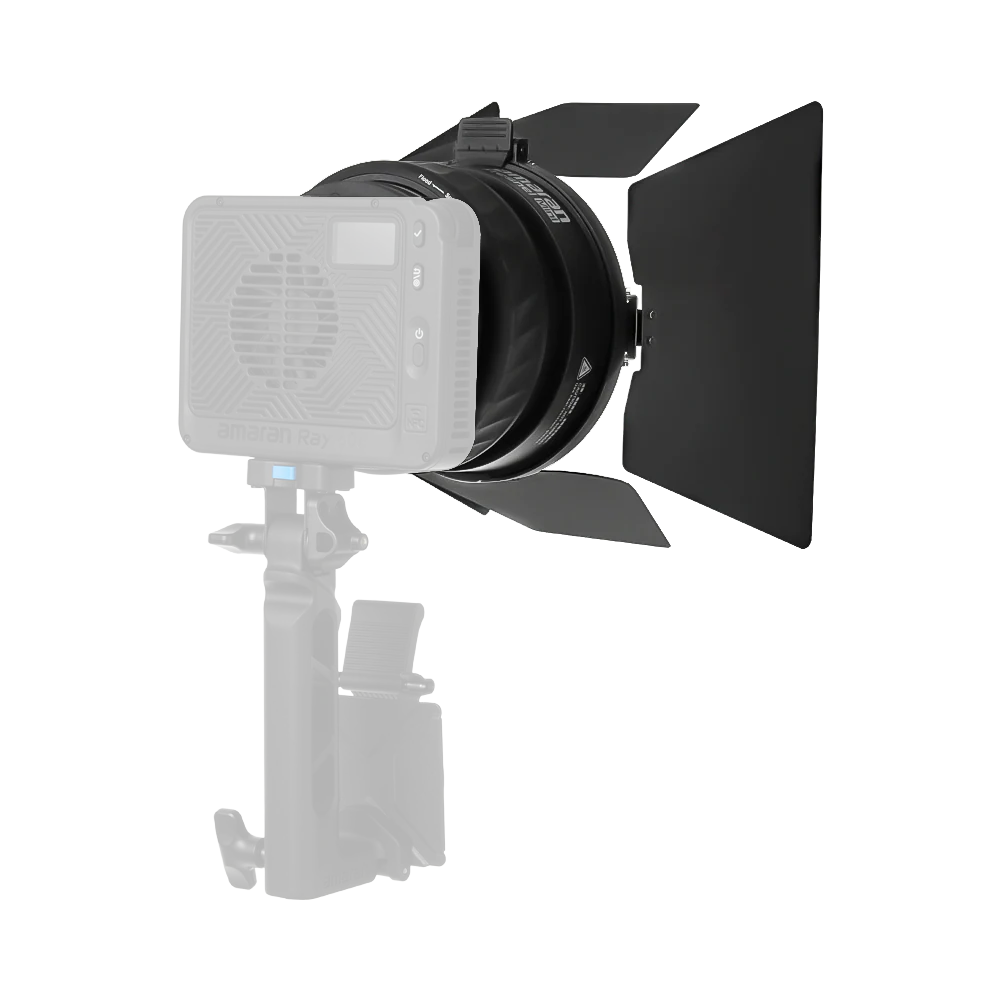

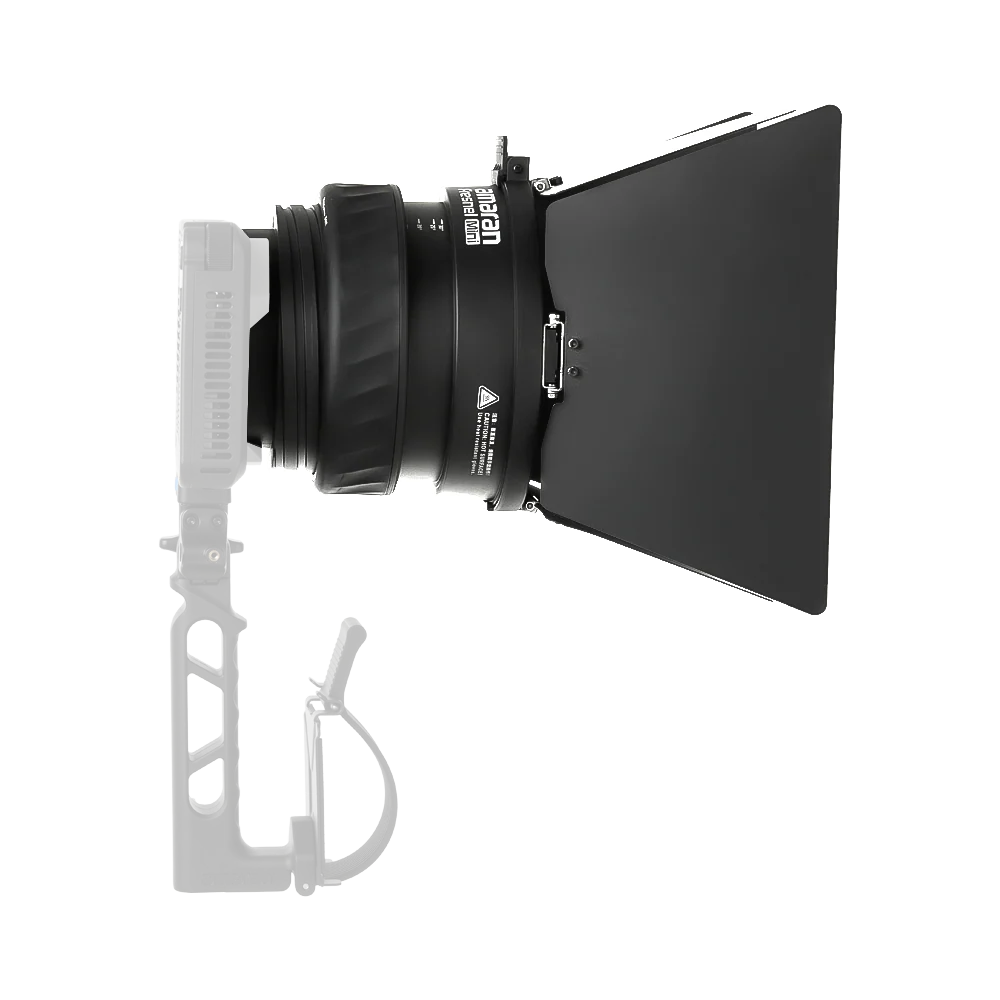

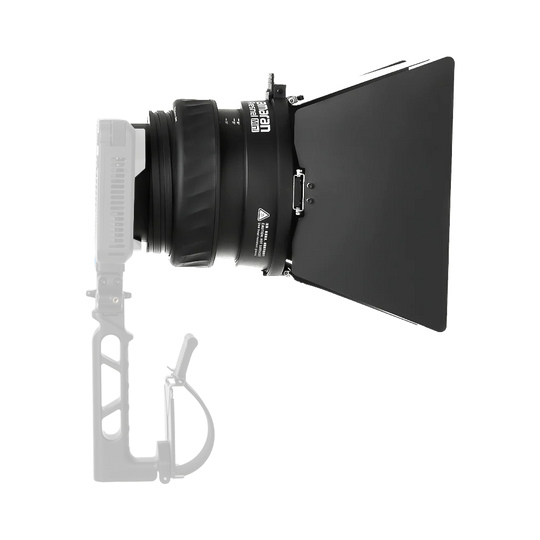

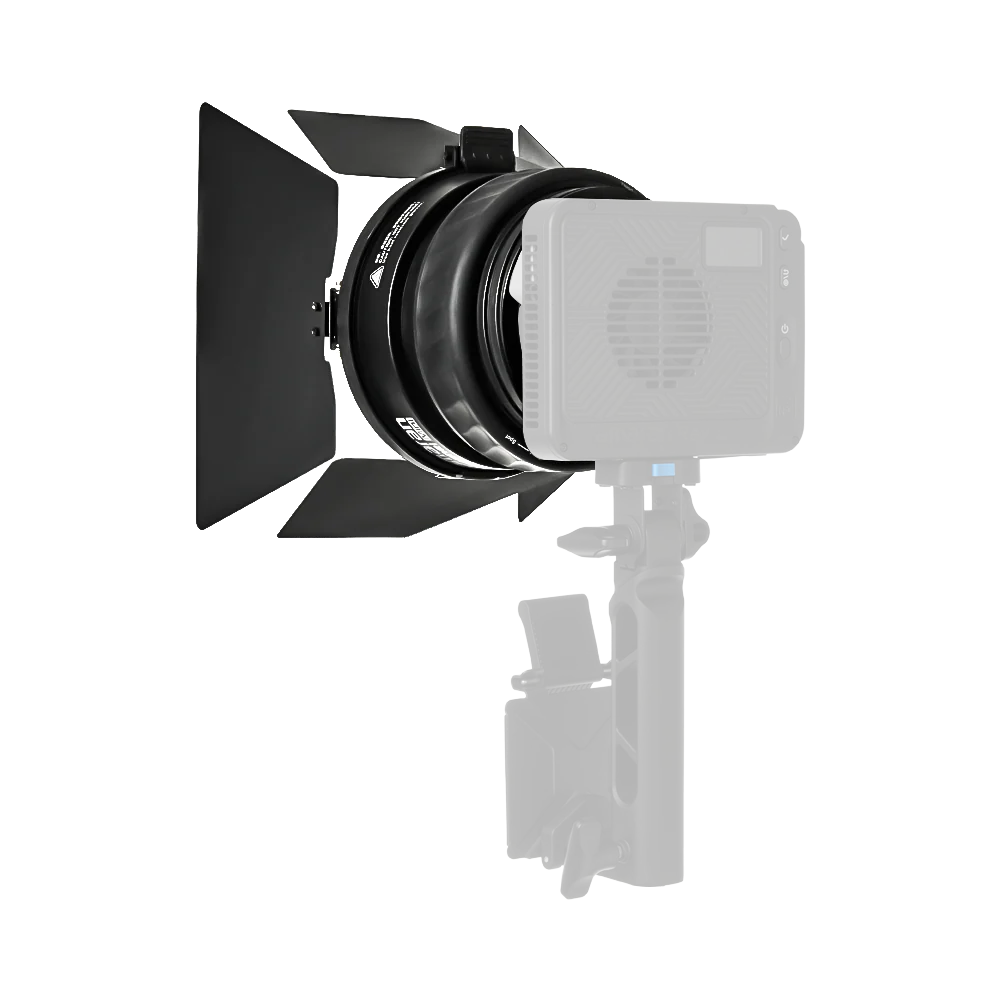

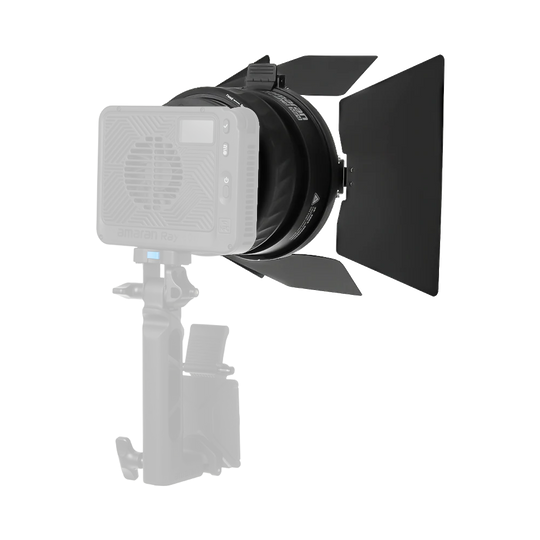

amaran Mini Fresnel for amaran Ray 60C ＆ 120C
Regular price$88.00
Tax included.
Key Features

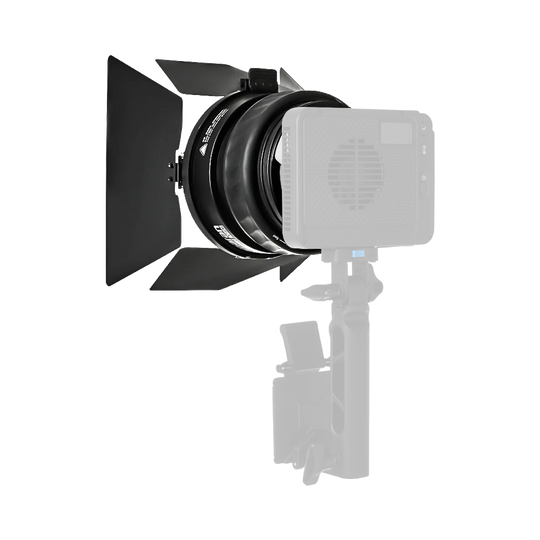

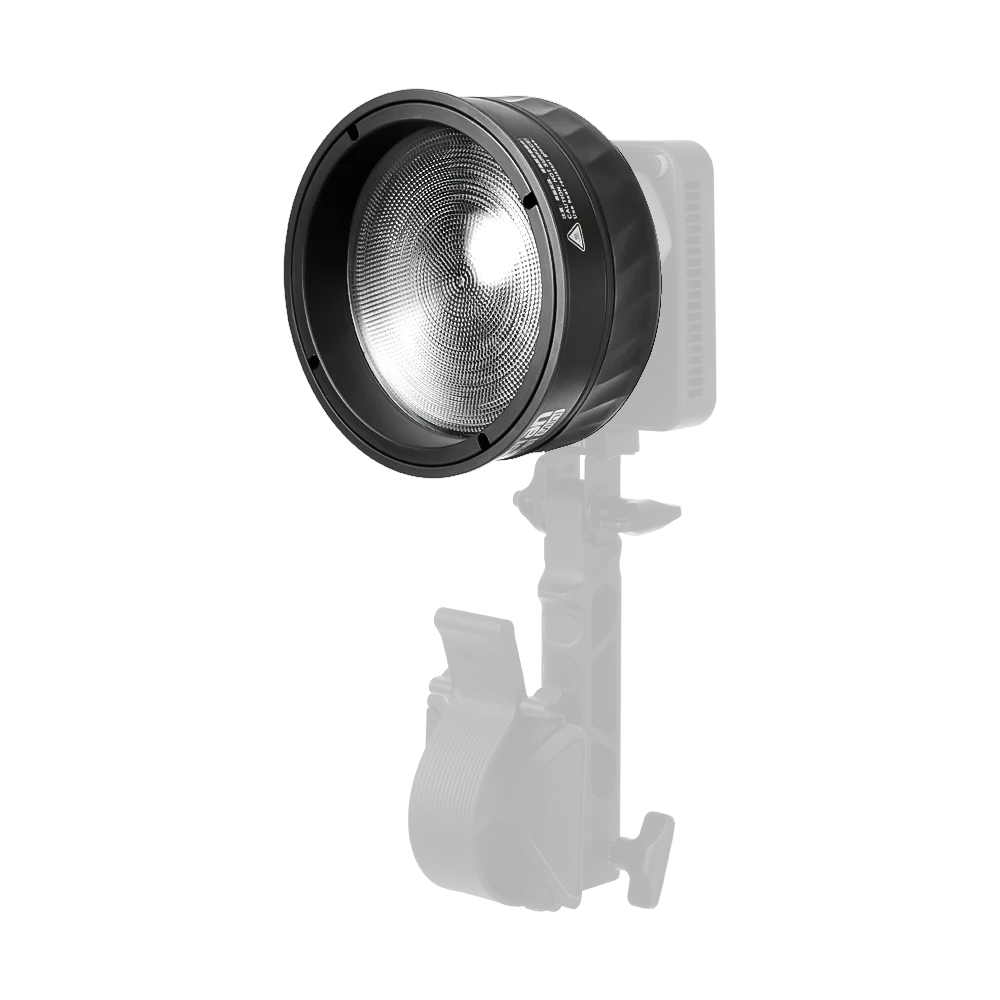

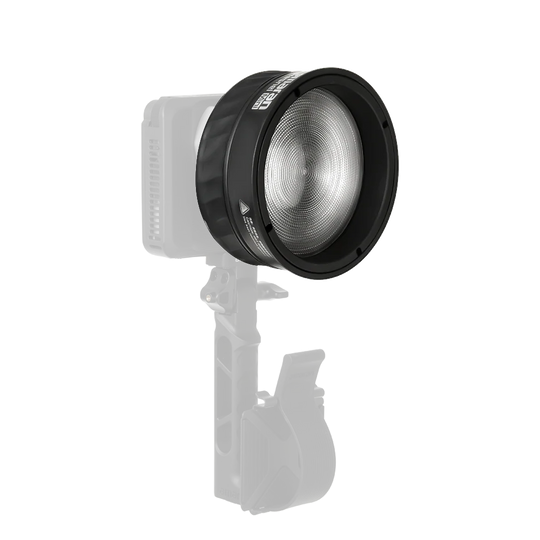

- Ultra-compact Bowens Mount fresnel attachment designed for amaran Ray 60c & 120c
- Up to 6x output boost: Intensifies output of amaran Ray 60c and 120c up to 23,790 lux and 42,600 lux @ 1m, respectively
- 15º to 30º spot-flood beam angle range

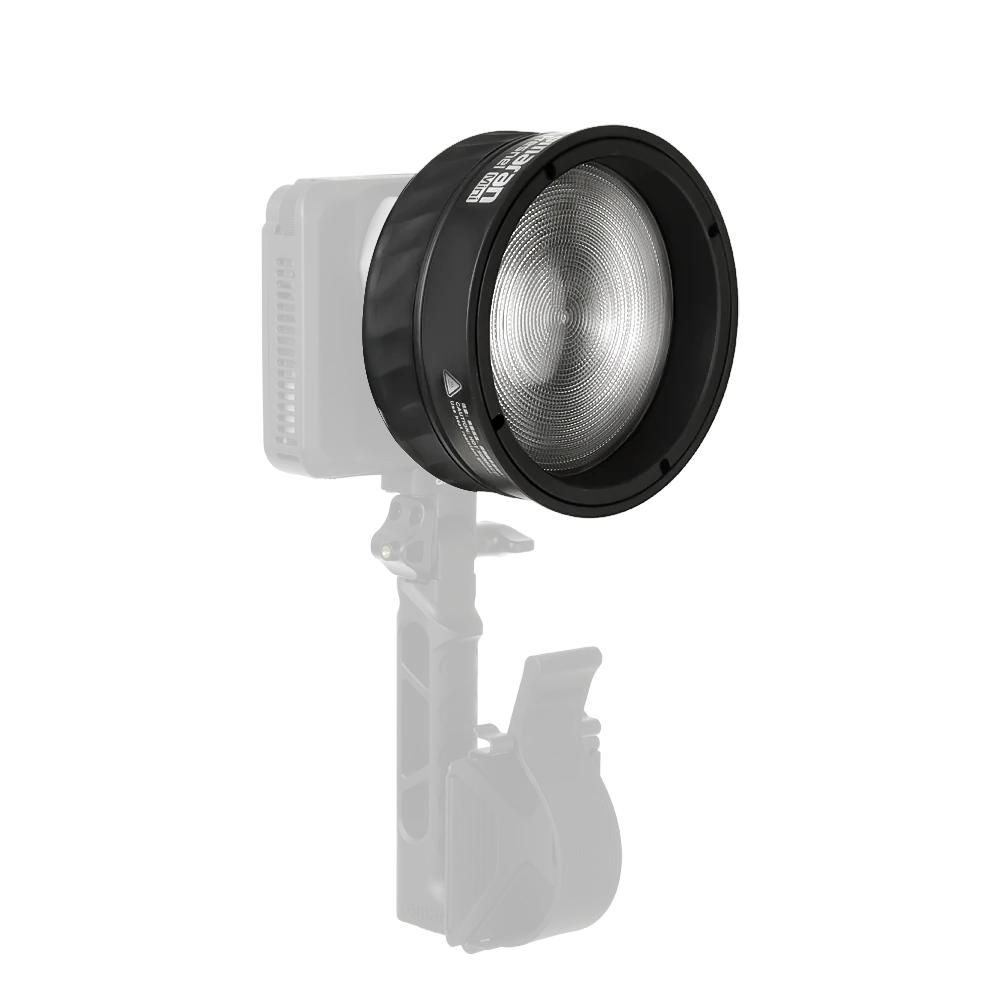

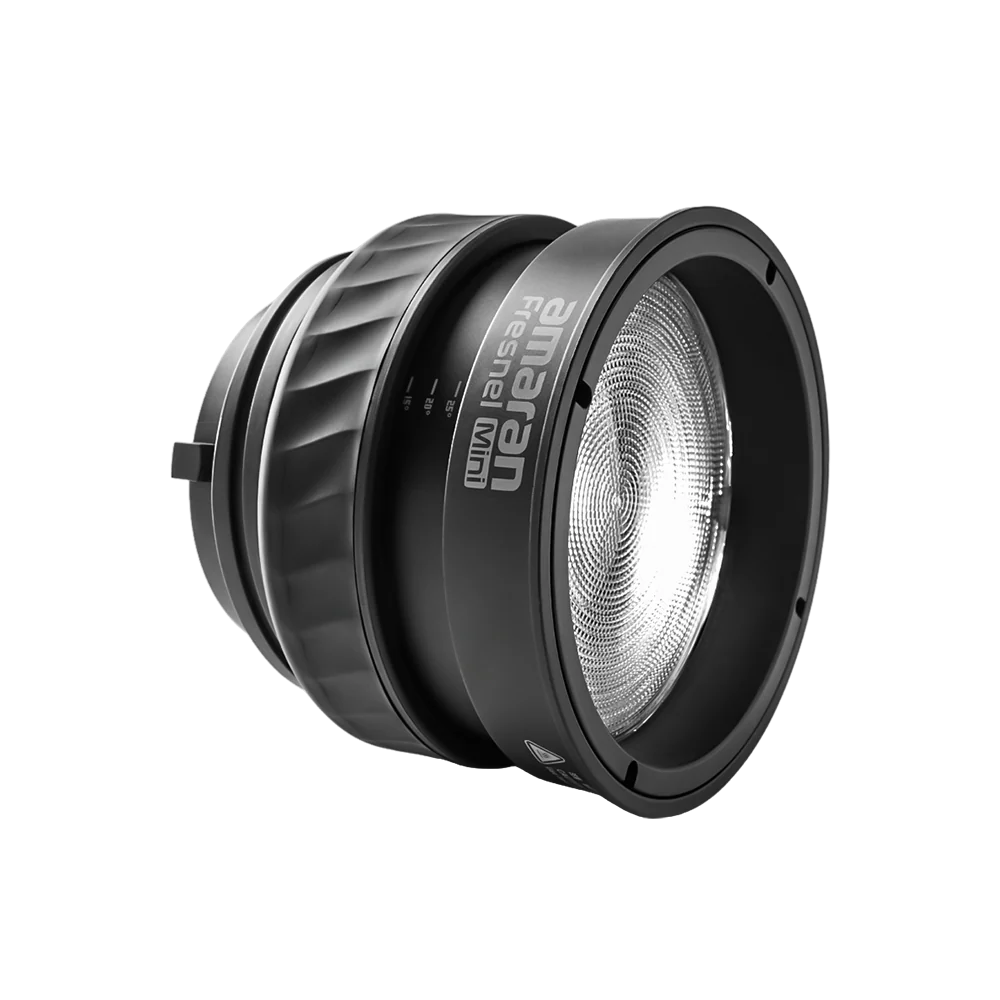

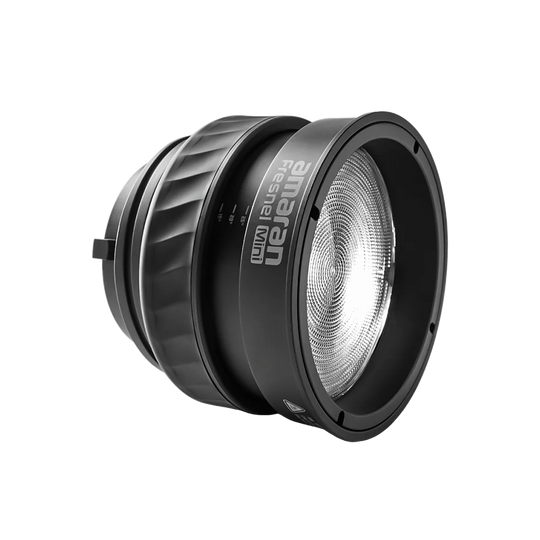

- 4.7in (12cm) diameter glass lens

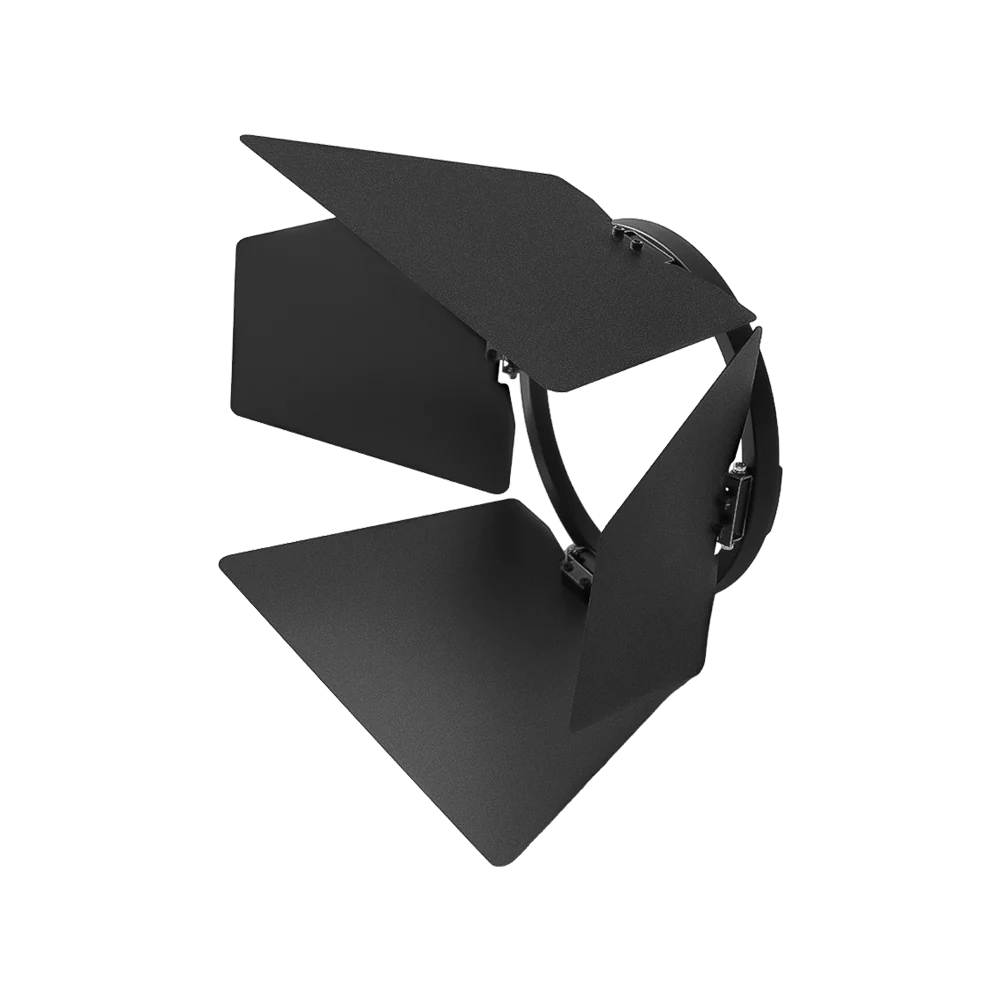

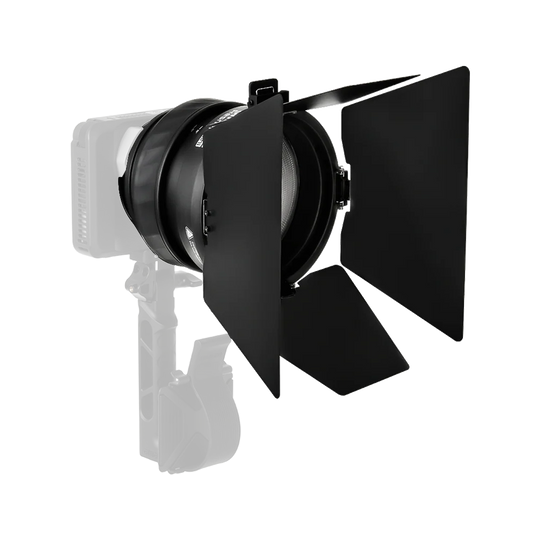

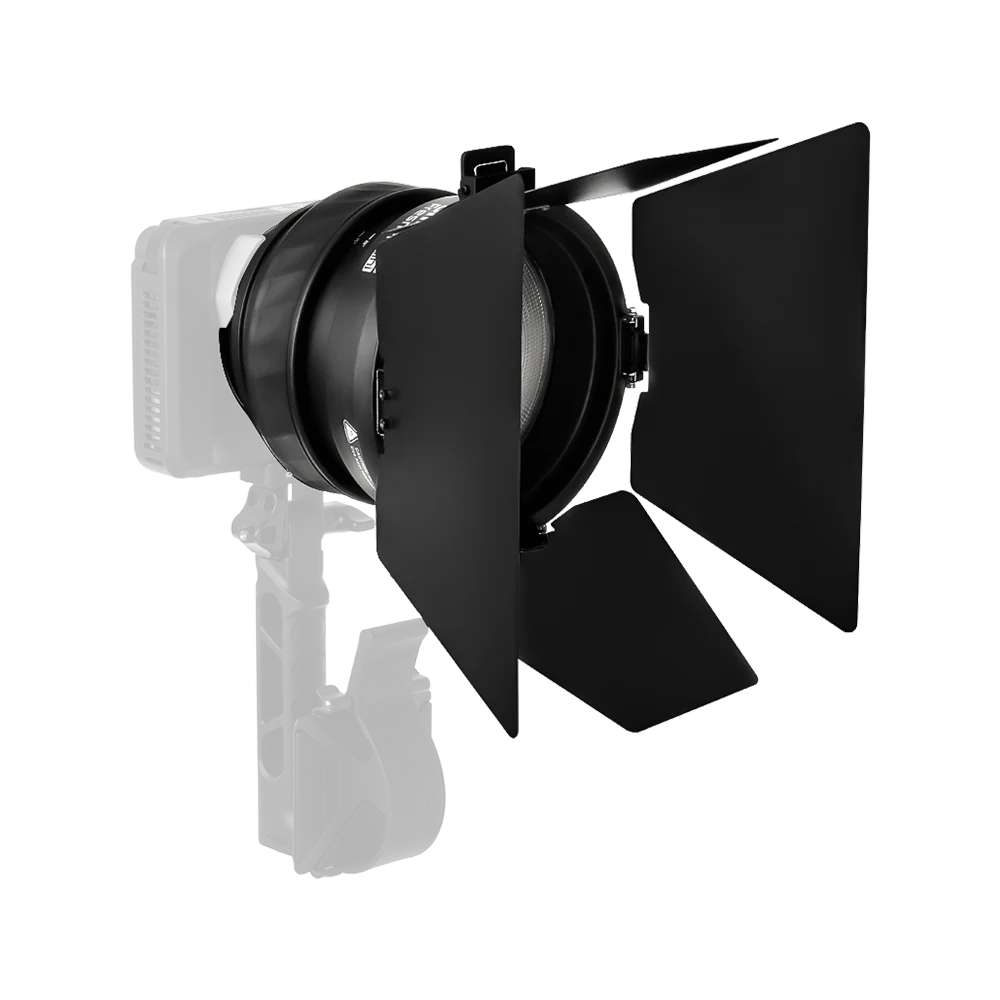

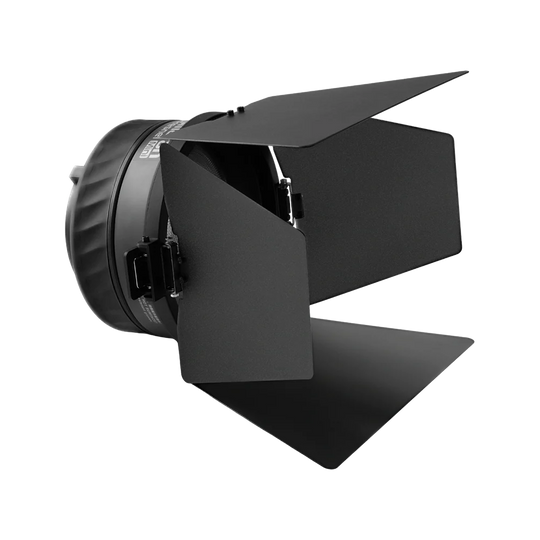

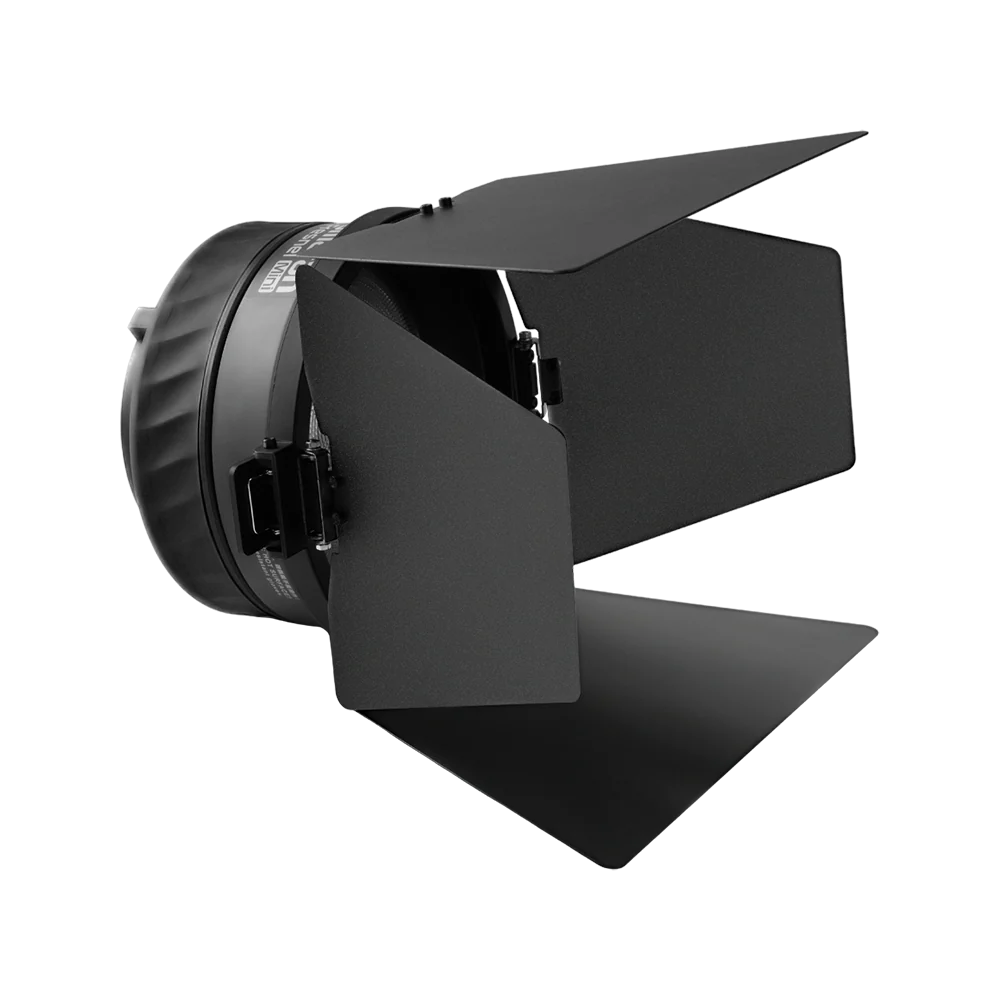

- Included adjustable 4-leaf mini barn doors to shape, cut, and control your light
What's in the Box
- 1x amaran Mini Fresnel

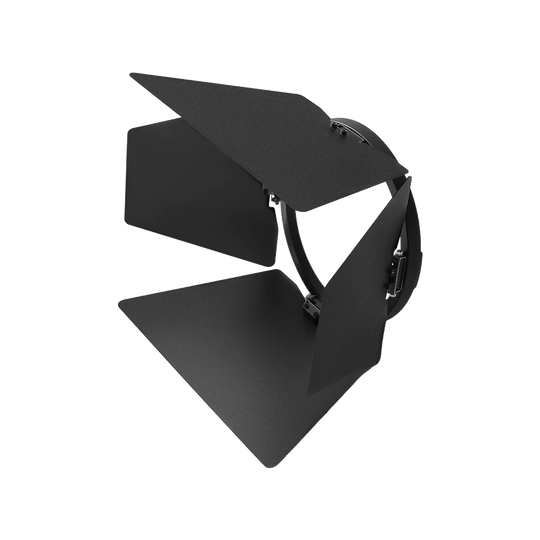

- 1x amaran Mini Barn Doors
Specifications
| Beam Angle (Spot) | 15º |
| Dimensions (Mini Fresnel) | Ø18.7 x 14.0cm Ø7.36 x 5.51in |
| Weight (Mini Fresnel) | 370g / 0.82lbs |
| Beam Angle (Flood) | 30º |
| Dimensions (Mini Barn Doors) | 26.9 x 17.4 x 5.9cm 10.59 x 6.85 x 2.32in |
| Weight (Mini Barn Doors) | 180g / 0.40lbs |
Photometric
| CCT | Dis | amaran Ray 60c (Spot 15°) | amaran Ray 60c (Flood 30°) | amaran Ray 120c (Spot 15°) | amaran Ray 120c (Flood 30°) |
|---|---|---|---|---|---|
| 2,300K | 1m | 20,030 lux | 7,740 lux | 29,900 lux | 11,540 lux |
| 3m | 2,226 lux | 860 lux | 3,322 lux | 1,282 lux | |
| 3,200K | 1m | 23,430 lux | 9,090 lux | 43,100 lux | 16,620 lux |
| 3m | 2,603 lux | 1,019 lux | 4,789 lux | 1,847 lux | |
| 4,300K | 1m | 23,790 lux | 9,250 lux | 42,600 lux | 16,480 lux |
| 3m | 2,643 lux | 1,028 lux | 4,733 lux | 1,831 lux | |
| 5,600K | 1m | 23,100 lux | 2,567 lux | 41,100 lux | 15,840 lux |
| 3m | 2,567 lux | 993 lux | 4,567 lux | 1,760 lux | |
| 6,500K | 1m | 22,640 lux | 8,780 lux | 40,200 lux | 15,520 lux |
| 3m | 2,516 lux | 976 lux | 4,467 lux | 1,724 lux | |
| 10,000K | 1m | 20,980 lux | 8,150 lux | 36,800 lux | 14,190 lux |
| 3m | 2,331 lux | 906 lux | 4,089 lux | 1,577 lux |
