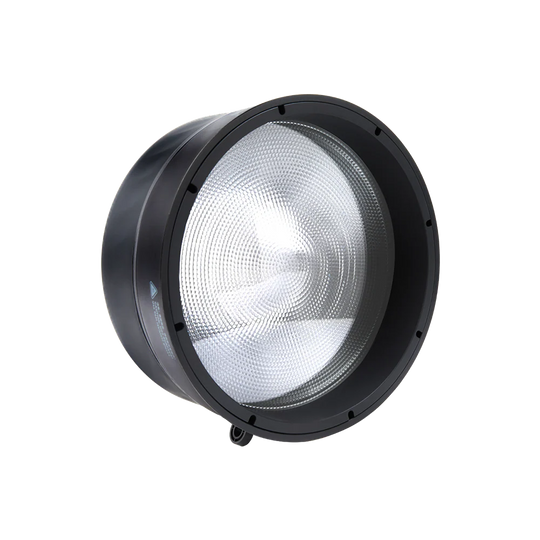

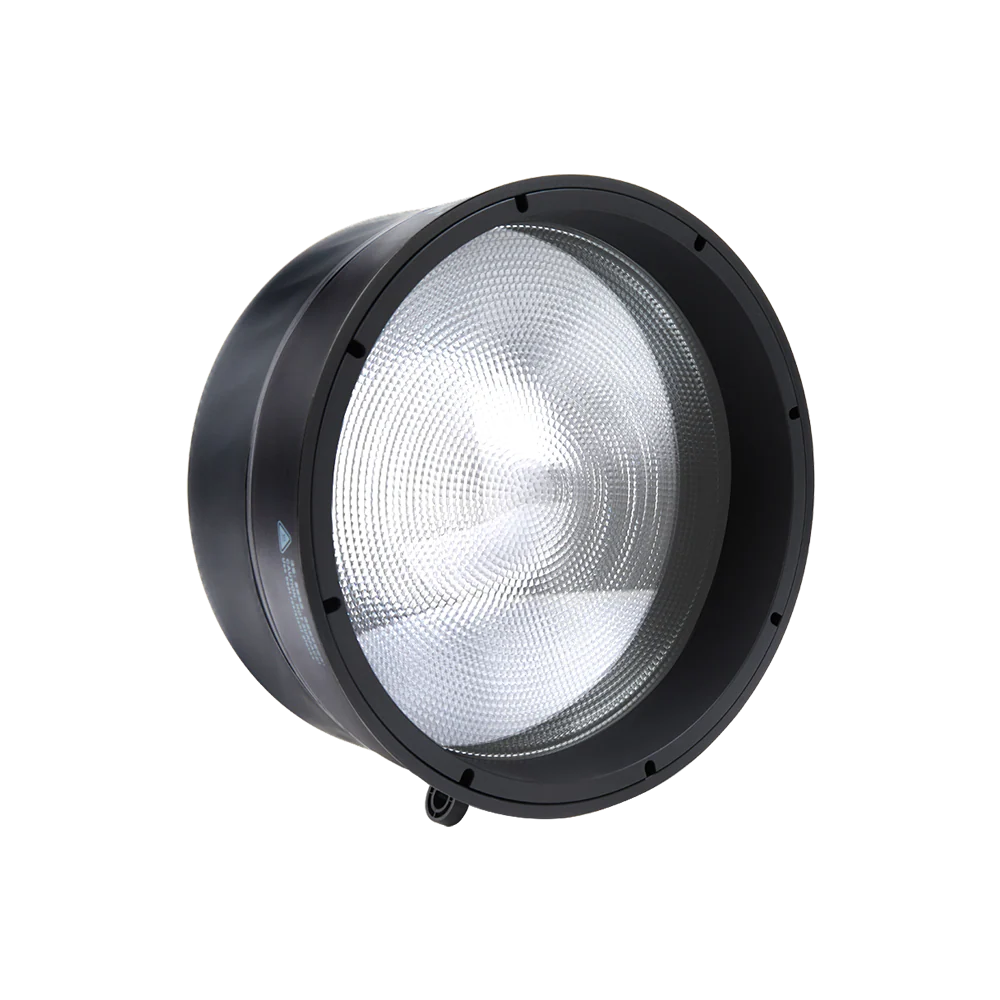

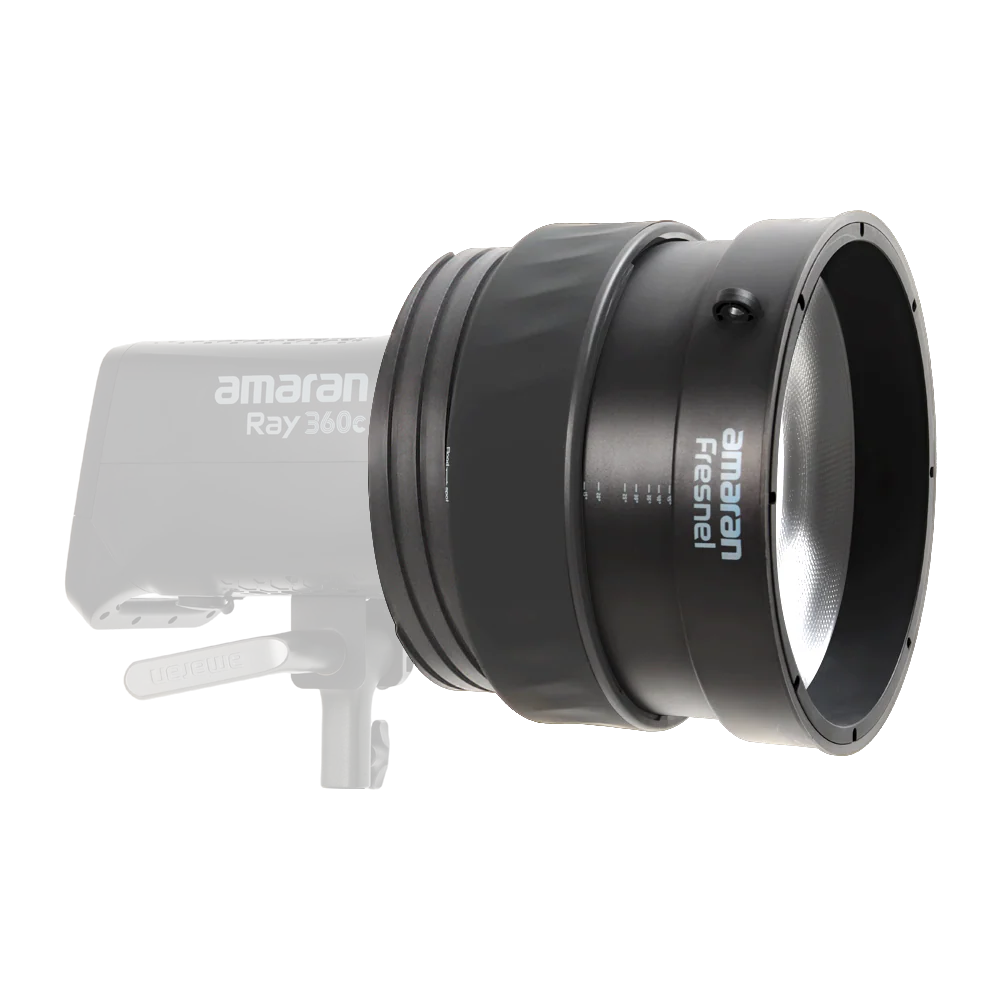

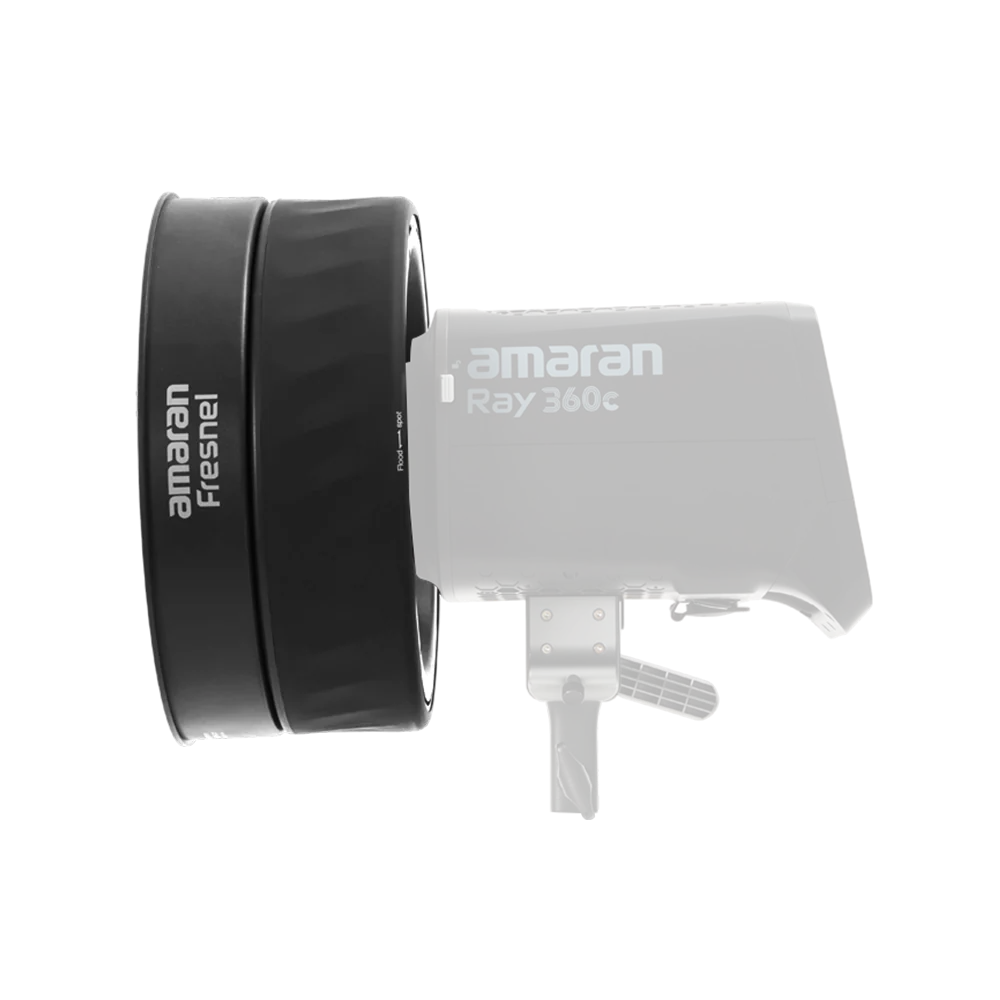

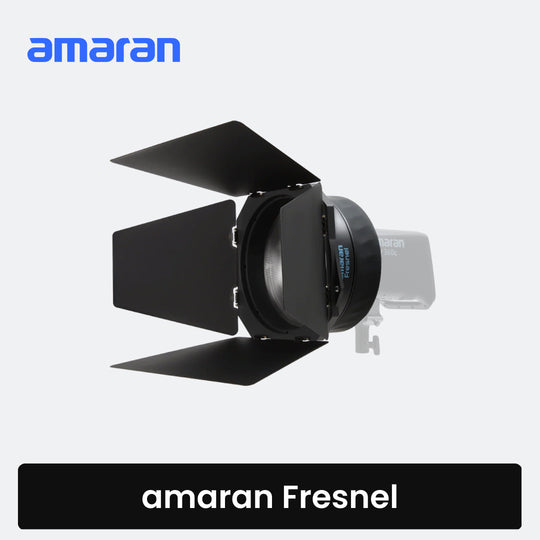

amaran Fresnel Attachment for amaran Ray 360c & 660c
Regular price$194.00
Tax included.
Key Features

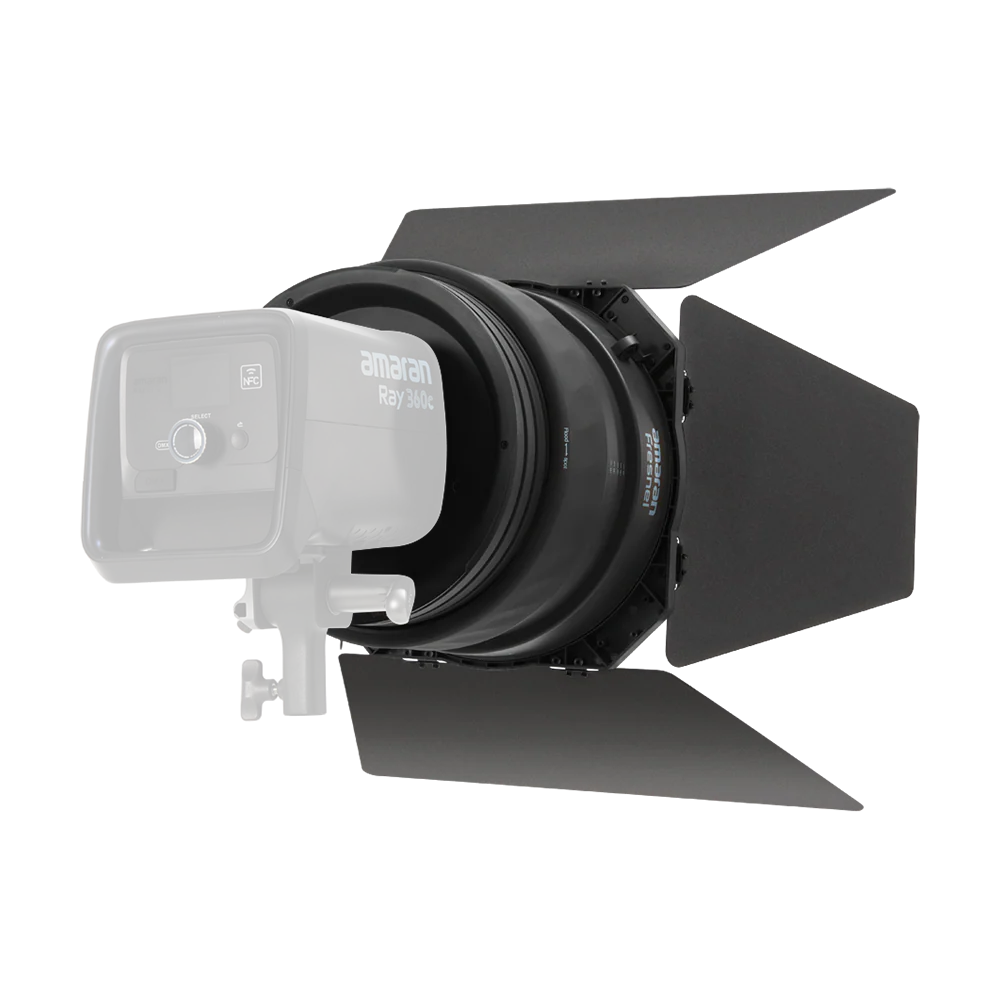

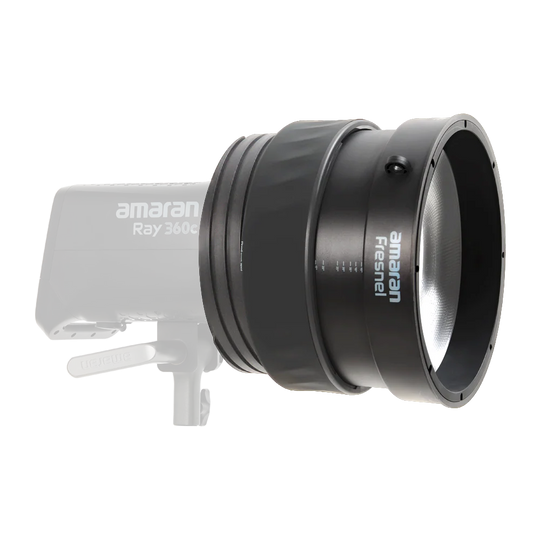

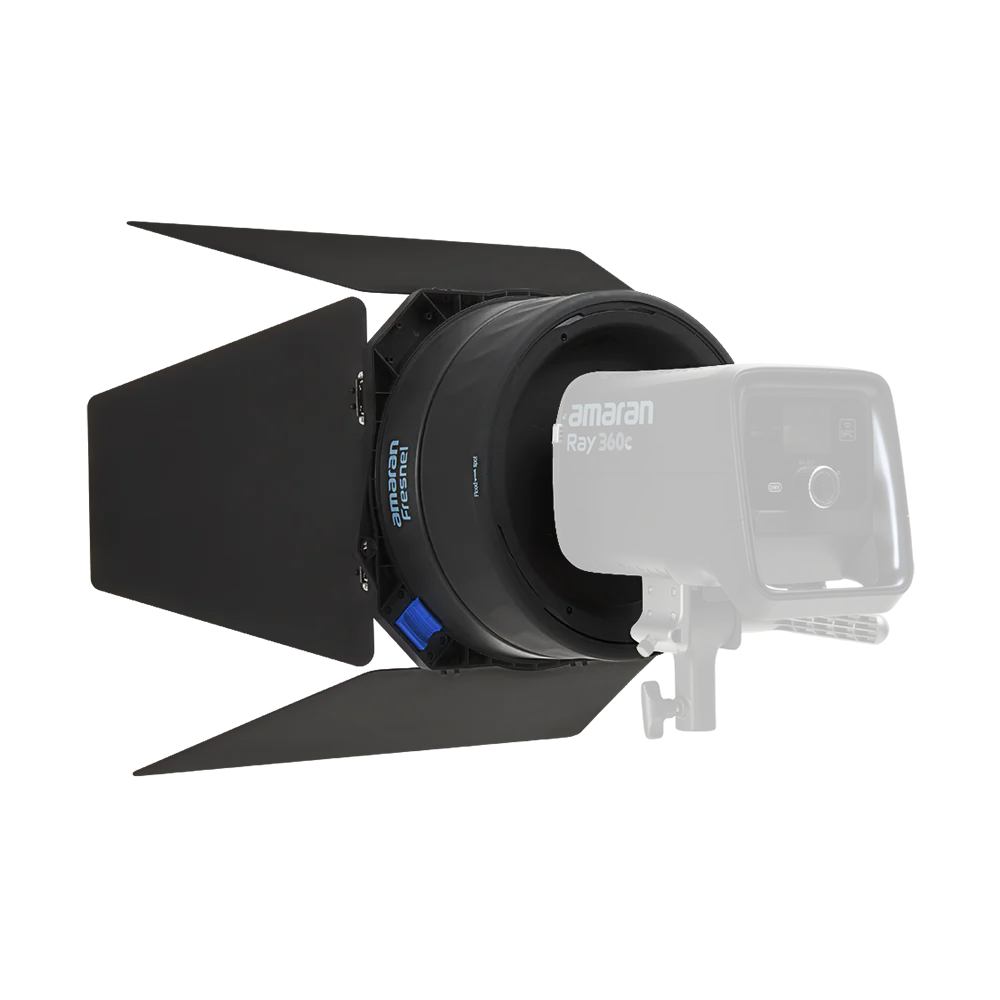

- Bowens Mount fresnel attachment designed for amaran Ray 360c & 660c
- Up to 9x output boost with Ray 360c: Intensifies output up to 18,110 lux @ 3m
- Up to 7x output boost with Ray 660c: Intensifies output up to 31,700 lux @ 3m
- Wide 15º to 45º spot-flood beam angle range
- Large 9.6in (24.5cm) diameter glass lens

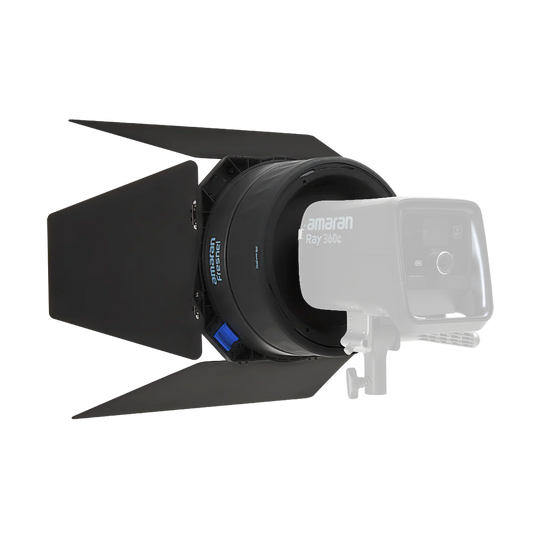

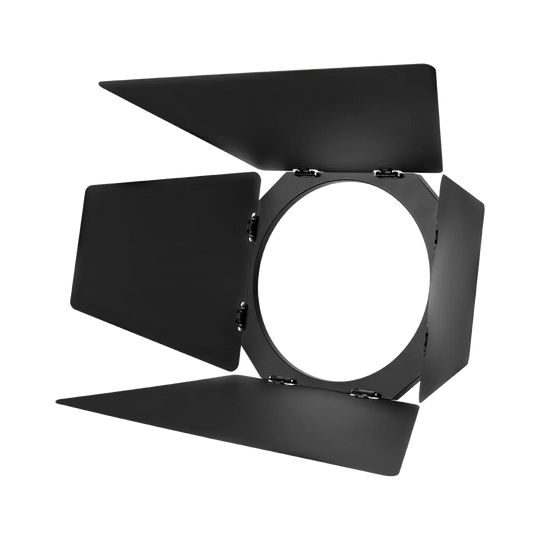

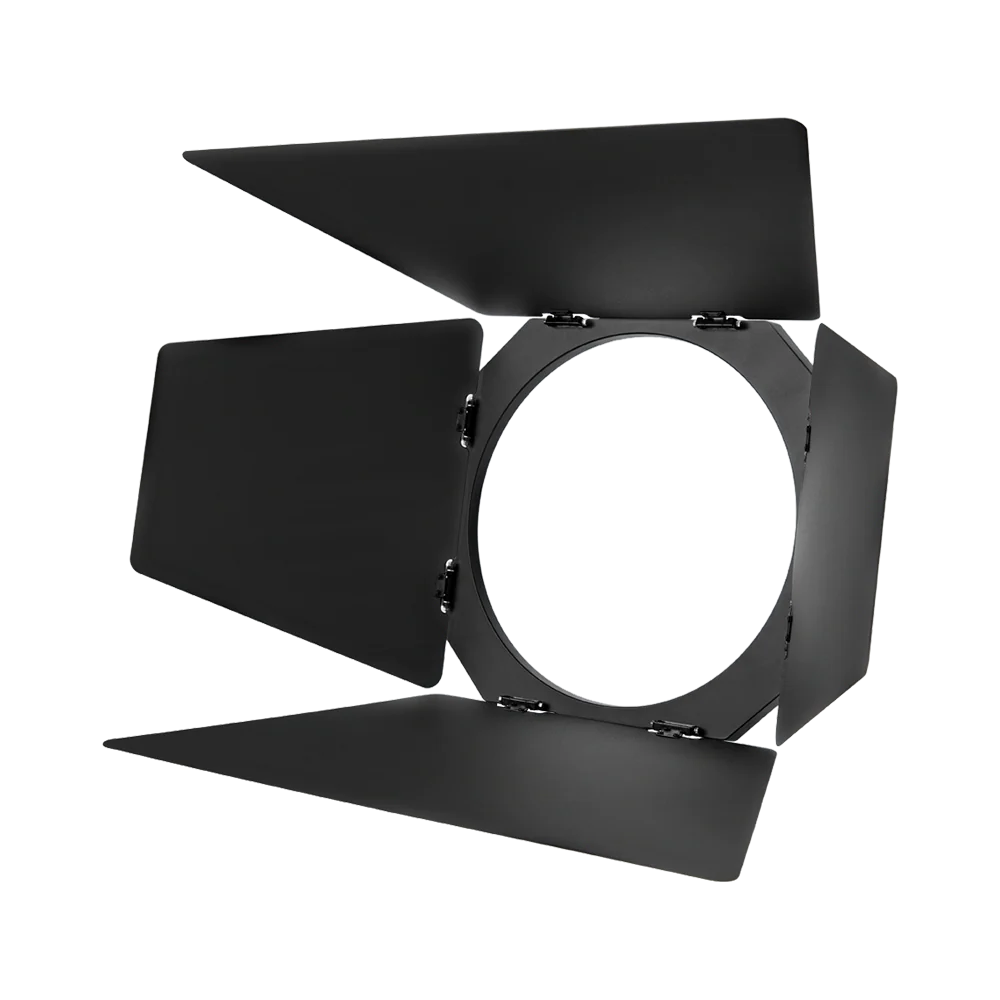

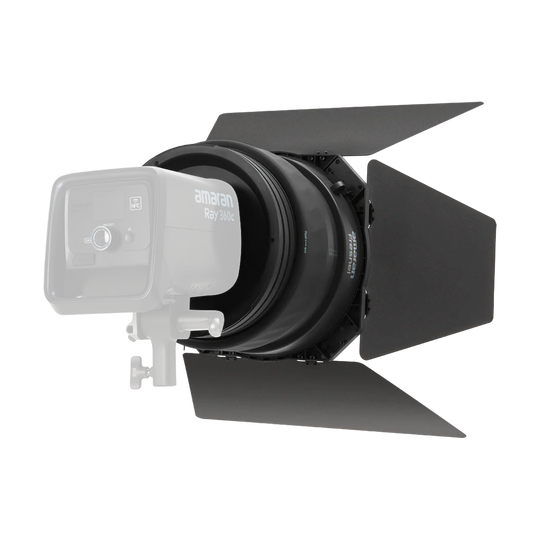

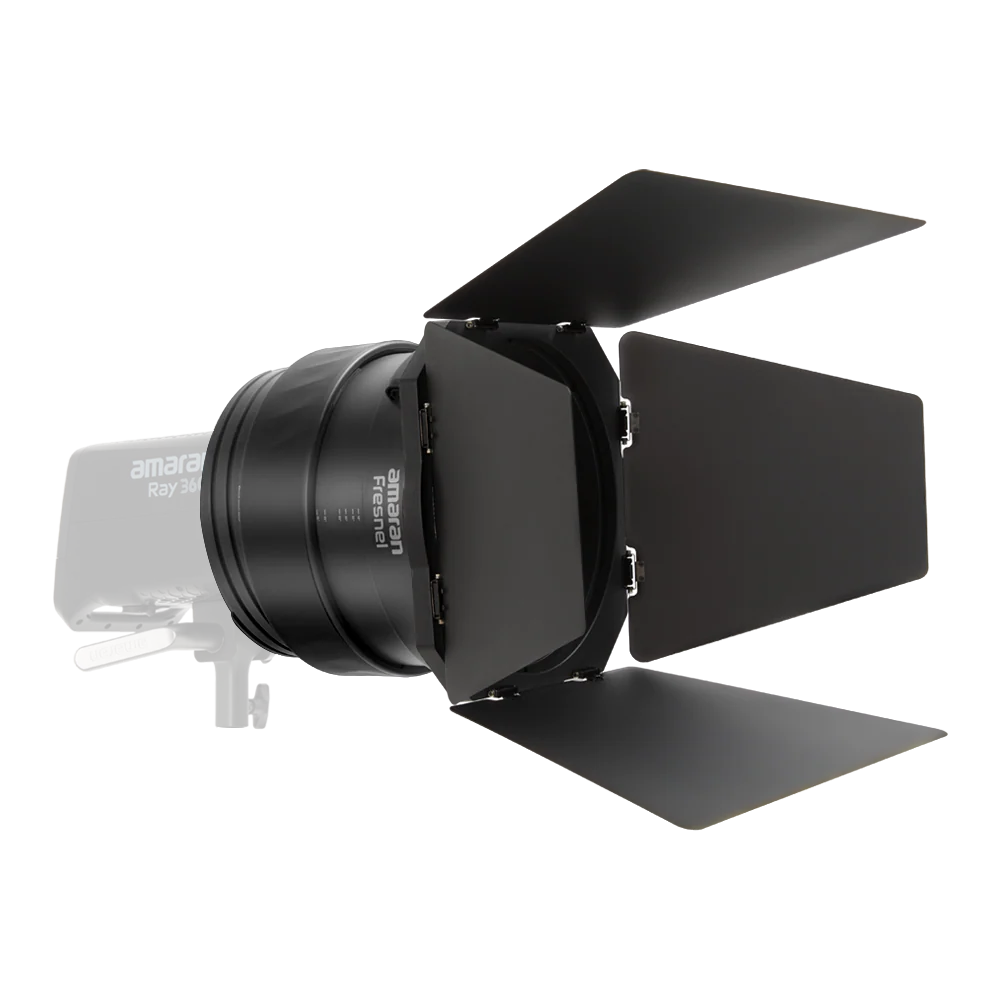

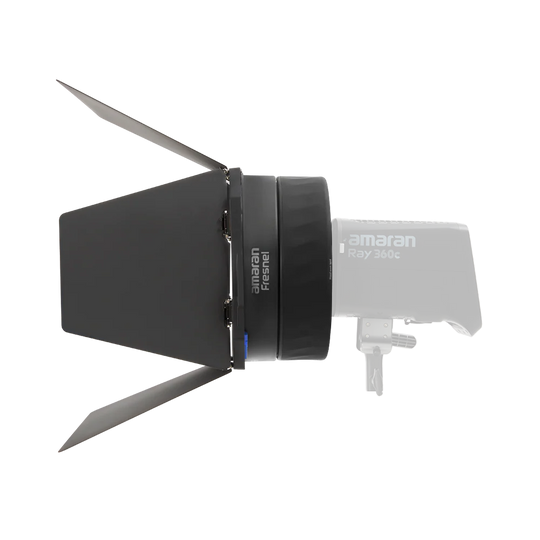

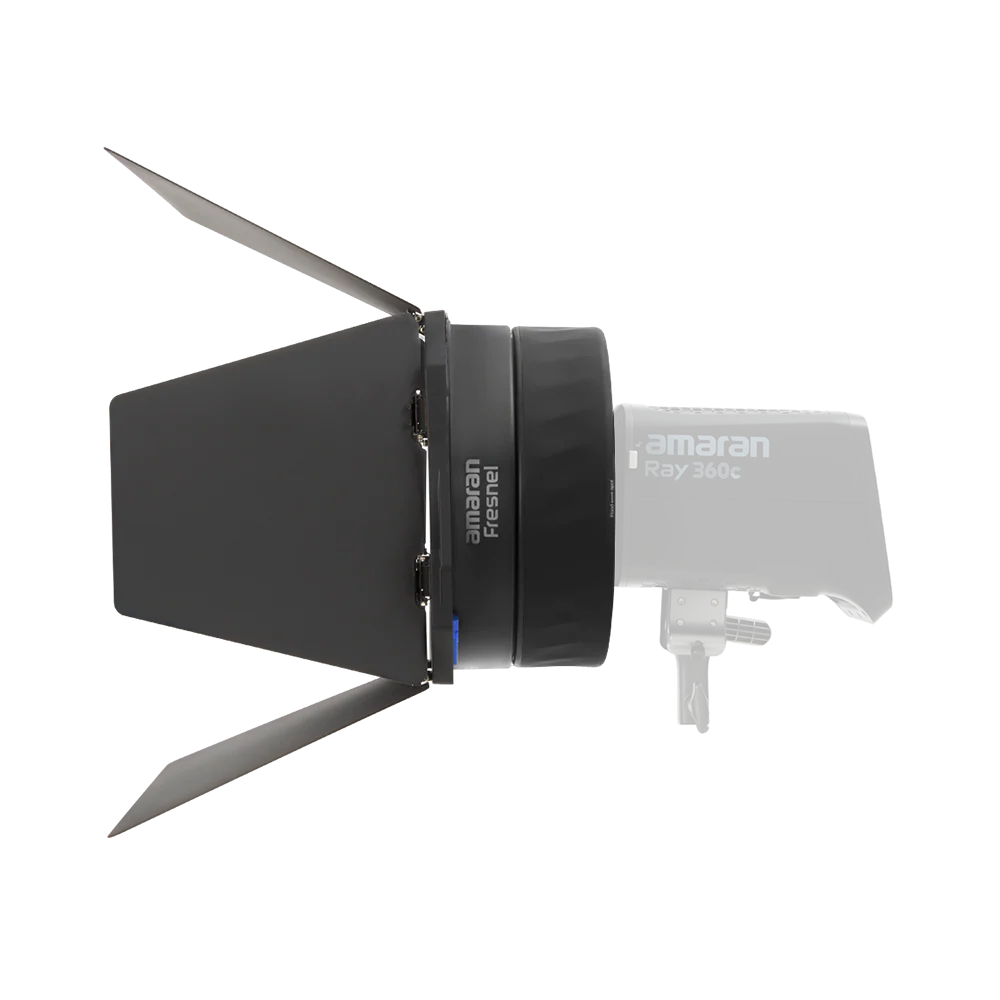

- Included adjustable 4-leaf barn doors to shape, cut, and control your light
Specifications
| Beam Angle (Spot) |
15º
|
| Dimensions (Fresnel) | Ø33.3 x 19.7cm Ø13.11 x 7.76in |
| Weight (Fresnel) | 2.4kg / 5.29lbs |
| Beam Angle (Flood) | 45º |
| Dimensions (Barn Doors) | 49.5 x 33.1 x 8.0cm 19.49 x 13.03 x 3.15in |
| Weight (Barn Doors) | 1.6kg / 3.53lbs |
Photometrics
| CCT | Dis | amaran Ray 360c (Spot 15°) | amaran Ray 360c (Flood 45°) | amaran Ray 660c (Spot 15°) | amaran Ray 660c (Flood 45°) |
|---|---|---|---|---|---|
| 2,300K | 3m | 10,570 lux / 982 fc | 1,738 lux / 161 fc | 20,230 lux / 1,879 fc | 4,250 lux / 394 fc |
| 5m | 3,750 lux / 348 fc | 634 lux / 59 fc | 7,420 lux / 689 fc | 1,327 lux / 151 fc | |
| 3,200K | 3m | 16,780 lux / 1,559 fc | 2,750 lux / 255 fc | 30,990 lux / 2,778 fc | 5,886 lux / 586 fc |
| 5m | 5,790 lux / 538 fc | 910 lux / 91 fc | 10,998 lux / 1,021 fc | 2,246 lux / 208 fc | |
| 4,300K | 3m | 18,110 lux / 1,682 fc | 2,970 lux / 276 fc | 29,945 lux / 2,682 fc | 6,821 lux / 621 fc |
| 5m | 6,210 lux / 577 fc | 968 lux / 96 fc | 11,081 lux / 1,008 fc | 2,338 lux / 217 fc | |
| 5,600K | 3m | 18,000 lux / 1,672 fc | 2,950 lux / 274 fc | 30,900 lux / 2,908 fc | 6,613 lux / 613 fc |
| 5m | 6,400 lux / 595 fc | 1,108 lux / 100 fc | 11,068 lux / 1,032 fc | 2,357 lux / 219 fc | |
| 6,500K | 3m | 17,590 lux / 1,630 fc | 2,880 lux / 268 fc | 28,871 lux / 2,671 fc | 6,030 lux / 603 fc |
| 5m | 6,350 lux / 1,073 fc | 1,310 lux / 124 fc | 11,310 lux / 1,051 fc | 2,474 lux / 226 fc | |
| 10,000K | 3m | 16,580 lux / 1,540 fc | 2,730 lux / 254 fc | 29,450 lux / 2,736 fc | 6,230 lux / 579 fc |
| 5m | 6,000 lux / 557 fc | 1,014 lux / 94 fc | 10,790 lux / 1,002 fc | 2,370 lux / 220 fc |
