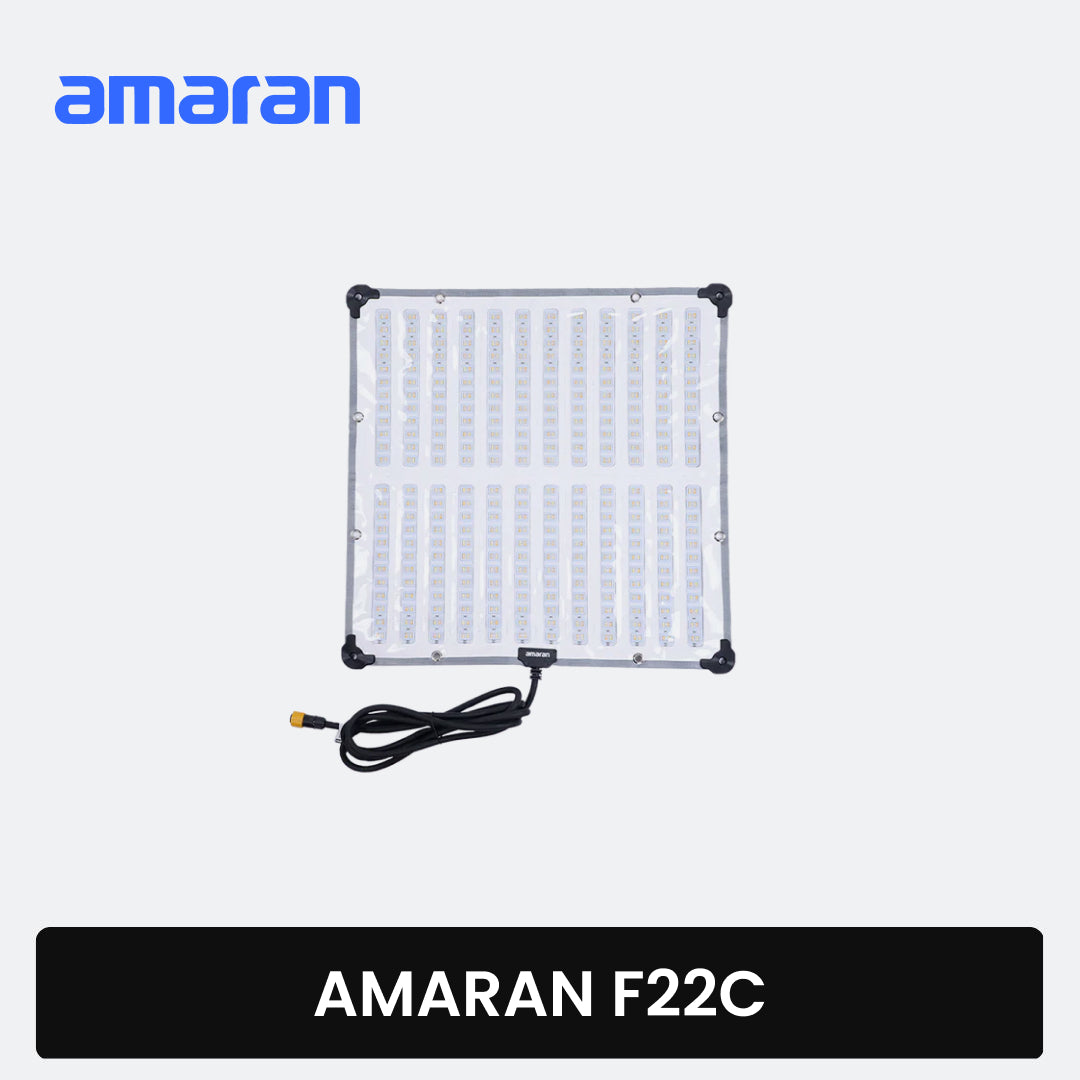

Amaran F22c RGBWW LED Mat Flexible Light Overview

The amaran F22c is an high-output, full-color, 2’x2’ flexible LED mat designed for a variety of users – from filmmakers to videographers, content creators, and even photographers. As an ultra-light, ultra-thin fabric light, the F22c is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a large, soft light that can fold compactly, it is the perfect close-up key light.

Full color control. The F22c features RGBWW LEDs for complete color control, as well as tunable CCT from 2,500K to 7,500K, providing endless possibilities for creative lighting decisions through 360° HSI control, 46 color gel presets, or even up to 15 unique lighting effects.

Ultimate flexibility. Install the included foldable softbox, one of two strengths of diffusion, or the fabric light control grid to instantly turn this flexible mat into an ultra-thin soft light that will make any subject shine.

MAIN FEATURES

• - 200W Output 2’x2’ RGBWW Flexible LED Mat
• - 240W Max Power Draw
• - 6,420+ lux @ 1 meter (5600K)
• - HSI Full Color Control with Tunable Green-Magenta Adjustment (Plus/Minus Green)
• - Tunable CCT from 2,500K to 7,500K
• - CRI: 95+, TLCI: 97+, CQS: 96+, SSI (Tungsten): 83+, SSI (D56): 74+
• - Stepless Dimming from 0 to 100%
• - Sidus Link App Control
• - DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter (Sold Separately)
• - 4 User-Configurable Preset Buttons
• - 15 Built-in Lighting FX: Paparazzi, Lightning, TV, Candle, Fire, Strobe, Explosion, Faulty Bulb, Pulsing, Welding, Cop Car, Color Chase, etc.
• - Frequency Selection: Tune Out Flicker, Up to +2000Hz Adjustment
• - Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)

WHAT’S IN THE BOX

• 1x amaran F22c RGBWW 2x2 LED Flexible Light Mat
• 1x amaran F22c Control Box
• 1x amaran F22c Head Cable Extension (3m)
• 1x amaran F22 Support Bracket
• 1x amaran F-Series Right Angle Baby Pin Adapter
• 1x amaran F-Series Straight Baby Pin Adapter
• 1x Tilting Stand Mount
• 1x amaran F22 Softbox Frame
• 1x amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
• 1x amaran F22 Diffusion Cloth 2 (2.5 Stop)
• 1x amaran F22 Light Control Grid
• 1x AC Power Supply
• 1x AC Power Cable
• 1x amaran F-Series Light Carrying Case

Full-Color Flexible Mat

The amaran F22c is a 2’x2’ ultra-lightweight flexible LED mat that offers outstanding light output and color rendering for indie filmmakers, videographers, content creators, and photographers who need a versatile and flexible lighting solution or want to add a splash of color to their scene.

2x2 Form Factor

As an ultra-light, ultra-thin fabric light, the F22c is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a simple, soft light that can fold compactly, it is the perfect close-up key light. Its traditional 2’x2’ form factor allows the F22c to provide ample surface area for an innately soft light, while still producing enough intensity to impact the scene.

Full Color Control

With its integrated RGBWW chipset, the F22c flexible panel grants you full control over creative lighting decisions, or adding a splash of color to your scene through its tunable CCT from 2,500K to 7,500K with green-magenta adjustment, 360º HSI control, 46 color gel presets, 15 built-in lighting effects, and 4 user-configurable preset buttons.

All-New X Bracket

The F22c now features a new and improved X Bracket that provides enhanced rigidity and security for your light mat. The X Bracket’s support tubes each have a 2-stage spring-loaded design, ensuring that the light mat is stretched taut and the bracket always stays attached. It is easy to set up and packs compactly, while also featuring an integrated knurled baby pin for easy mounting.

Power Flexibility

For creators looking for a compact and portable lighting solution with a seamless user experience, the F22c control box features a multi-voltage V-Mount or Gold-Mount battery plate compatible with 14.4V/26V/28.8V/48V batteries. Full output can also be achieved using the AC power supply.

Redefined Soft Source

To add a beautifully controlled soft light to your scene, attach the included softbox, one of two strengths of diffusion cloths, or the included light control grid using the integrated hook-and-loop fabric to further finesse your lighting design. The F22c can also be combined with the amaran F22 Lantern with light control skirt to extend the fixture as a volumetric lantern or pancake light.

Professional Controls

In addition to controlling your lighting design from Sidus Link, the F21c can be controlled externally via wired DMX with the USB-C to 5-Pin DMX512 In & Out Adapter*, adding professional-level control to your favorite flexible light mat.

• USB-C to 5-Pin DMX512 In & Out Adapter sold separately.

Light your scenes with a spectrum of colors using the Amaran F22c 2x2 RGBWW LED flexible panel, featuring intuitive HSI controls and seamless Sidus Link integration for ultimate creative lighting design #AmaranF22c #RGBWWLight #LEDPanel #FlexibleLighting #Aputure #FilmmakingGear #ContentCreationTools #LightingSetup #HSIColor #SidusLinkControl.

Technical Specifications
