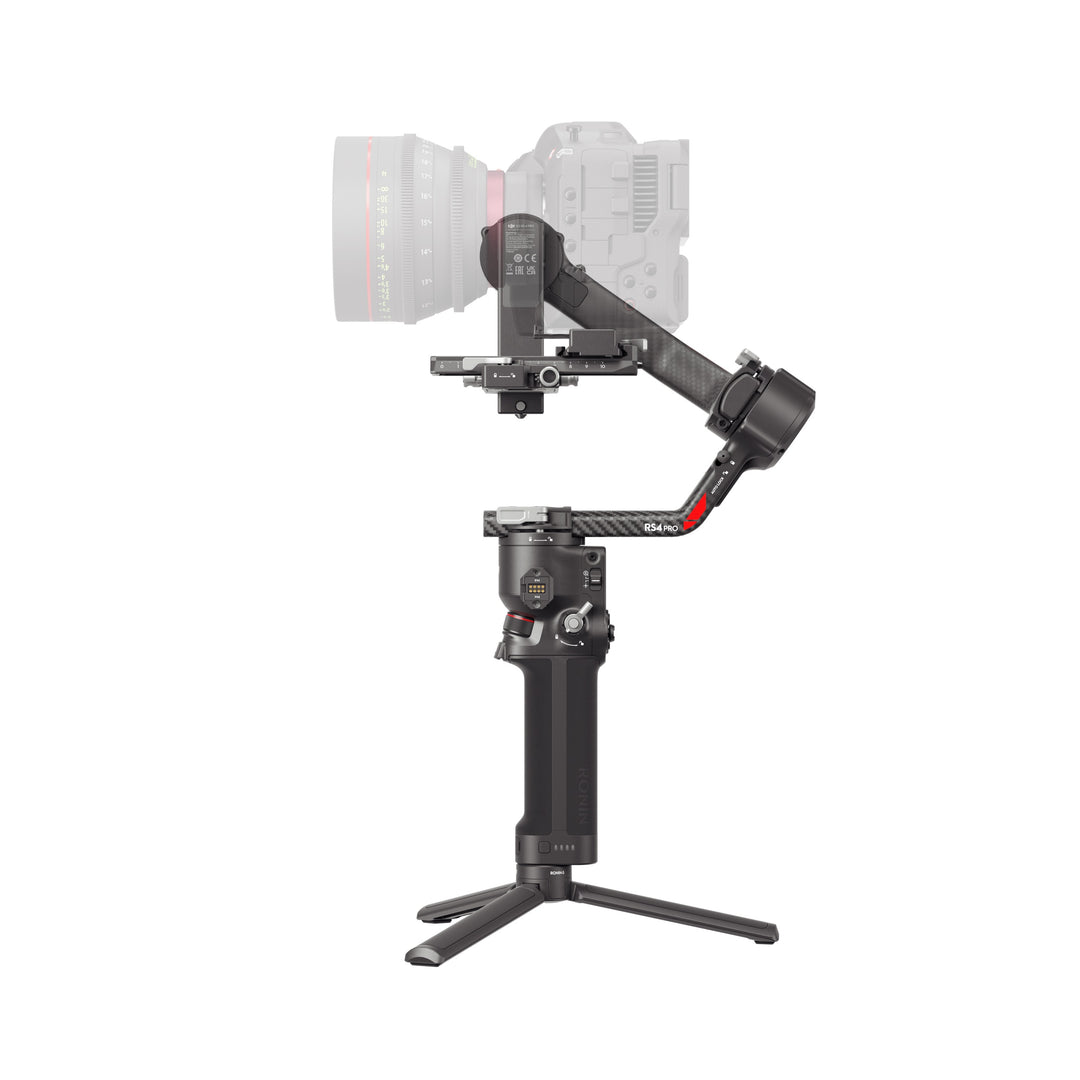

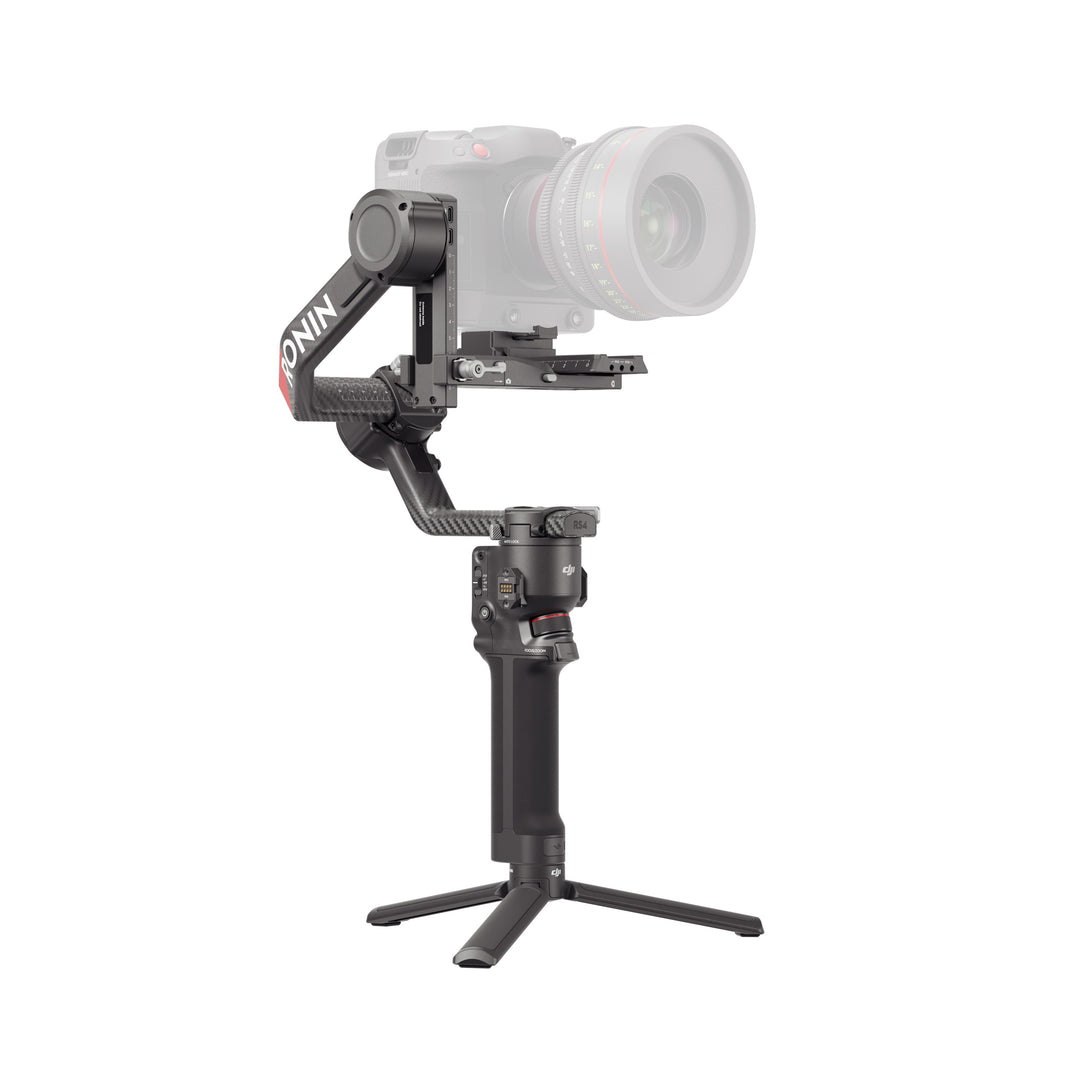

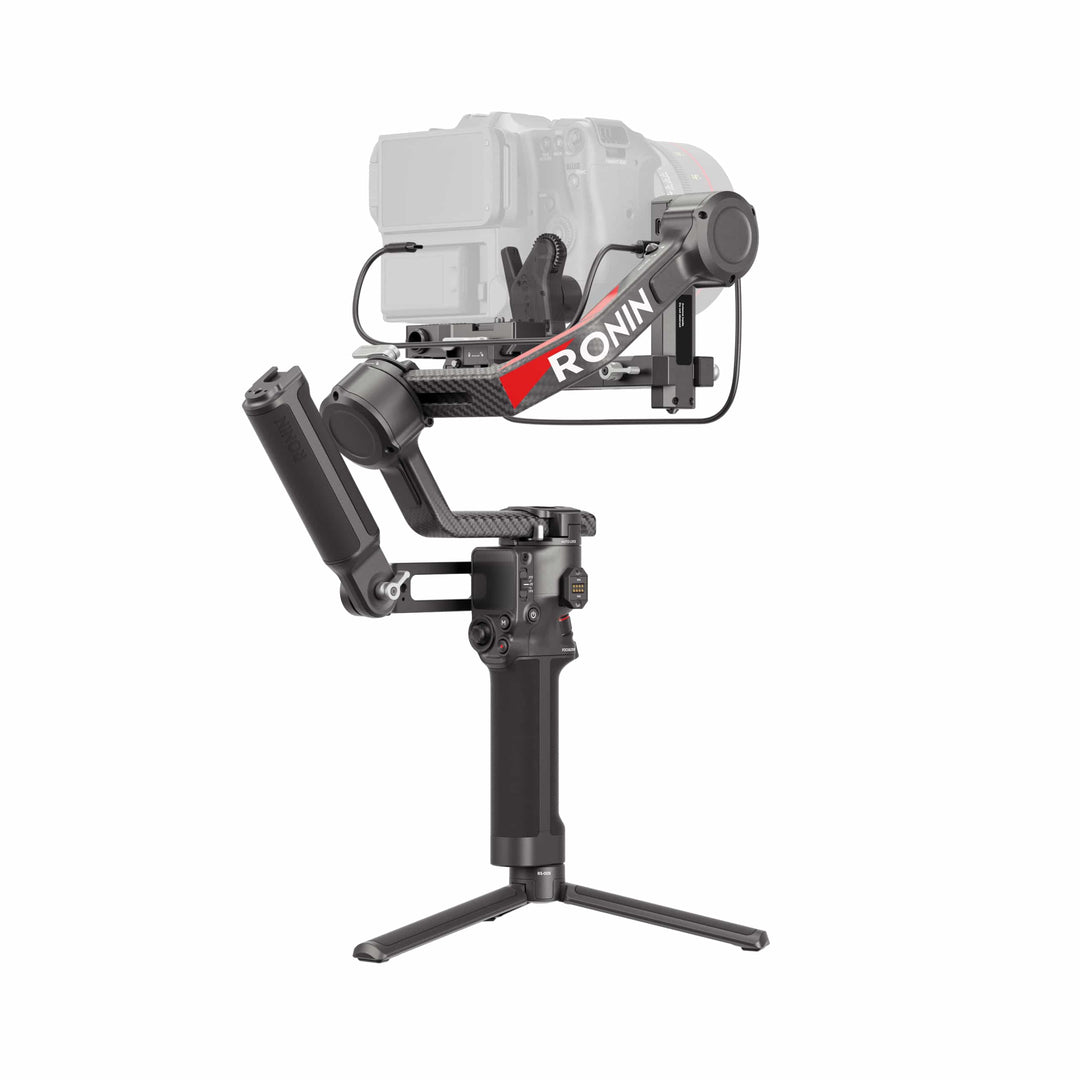

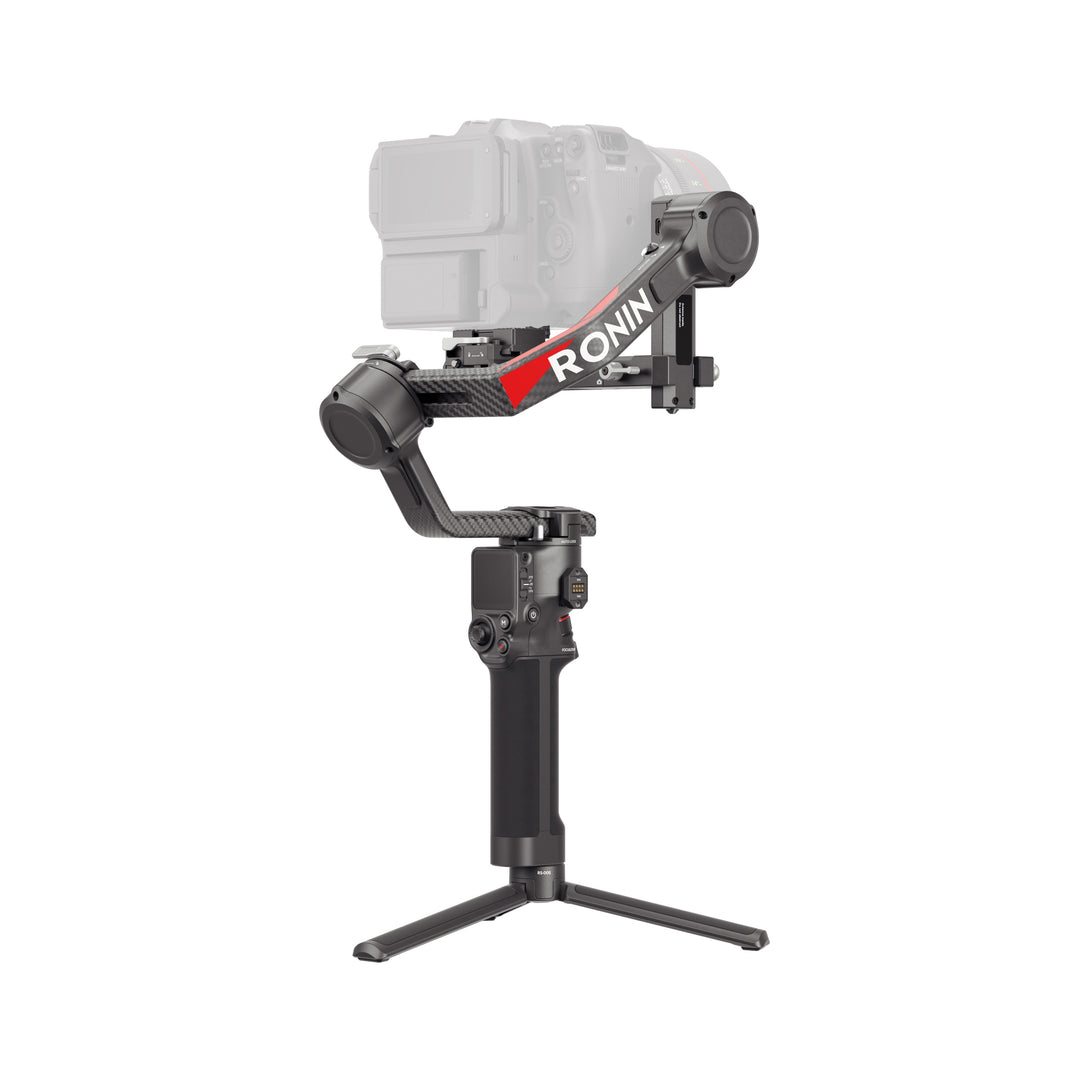

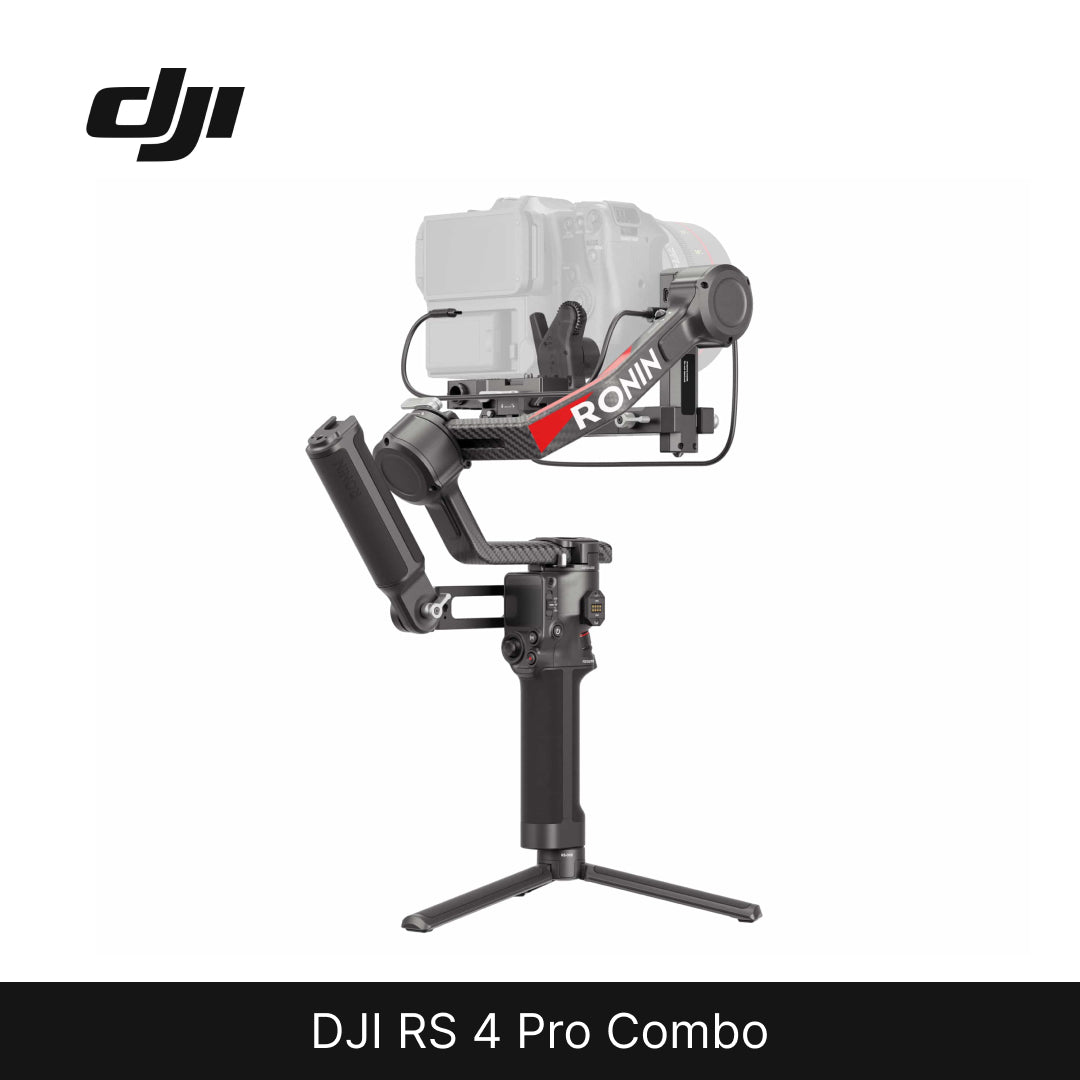

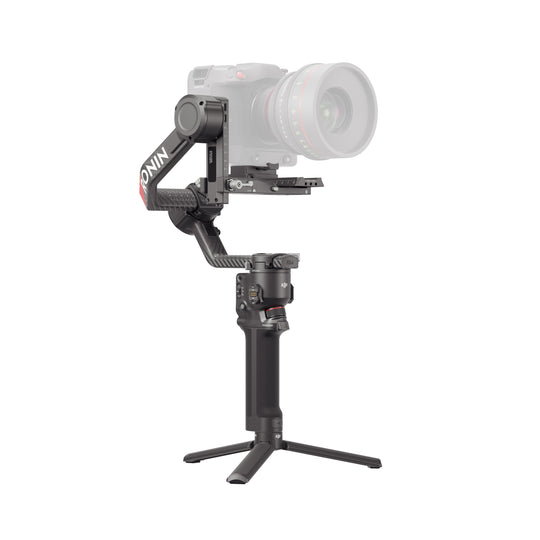

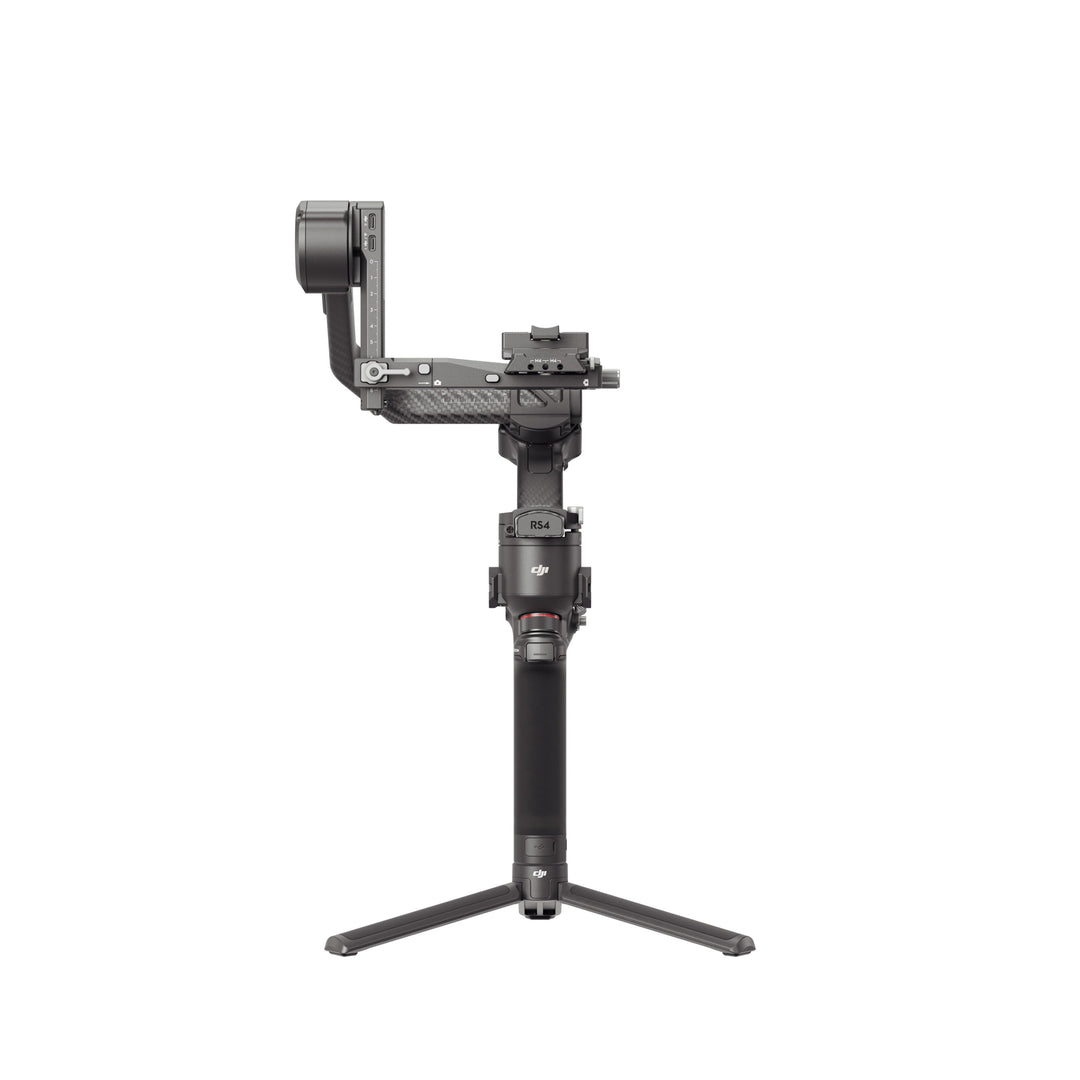

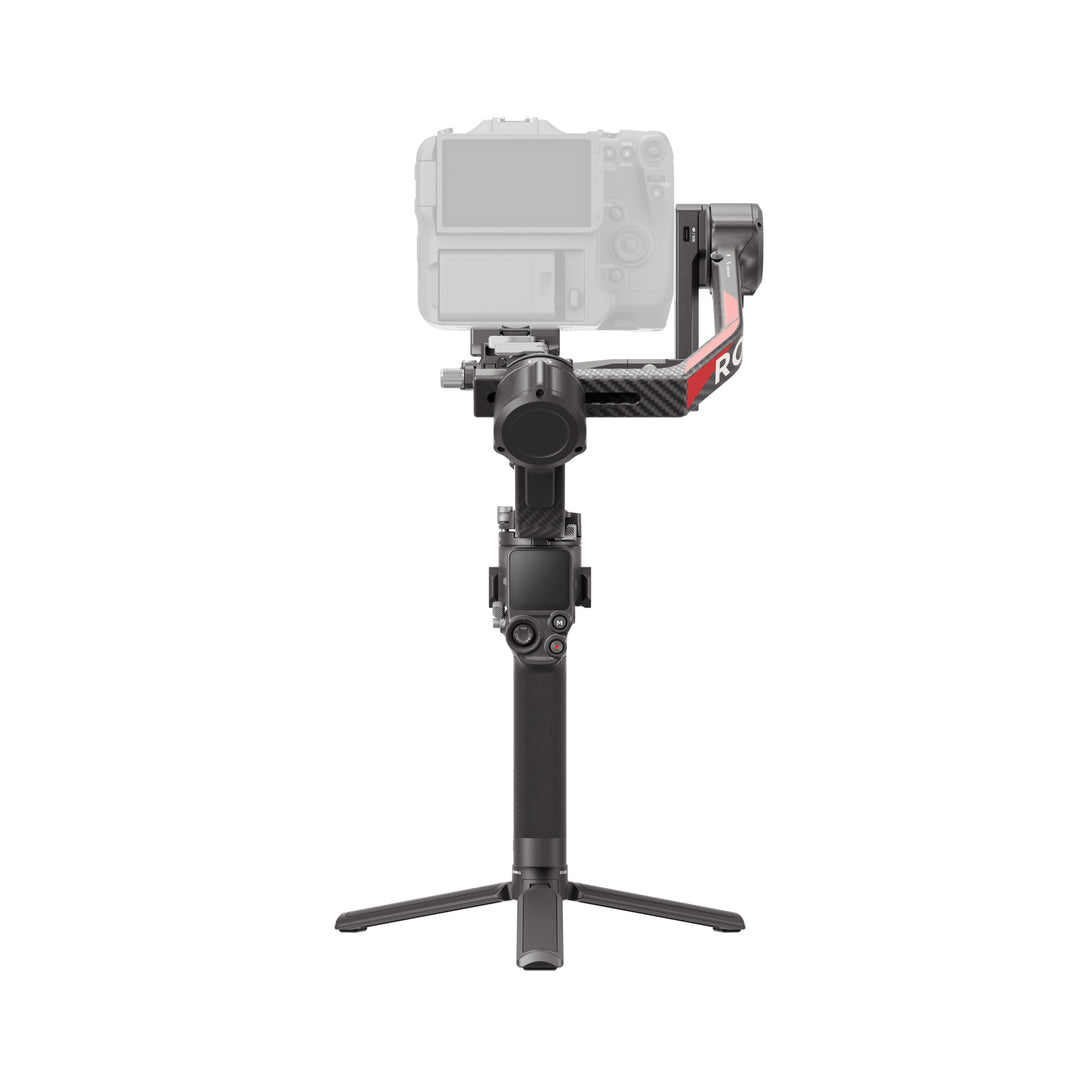

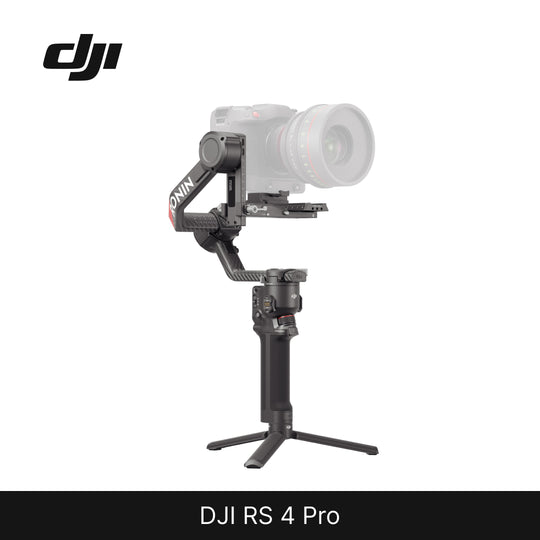

DJI RS 4 Pro

DJI RS 4 Pro: The Pinnacle of Handheld Stabilization

The DJI RS 4 Pro is a premium-grade handheld gimbal stabilizer designed for professional filmmakers and photographers. With its advanced features and unparalleled performance, the RS 4 Pro offers the ultimate in image stabilization and versatility.

Key Features:

• Enhanced RS Stabilization: Experience even more precise and stable footage with the RS 4 Pro's upgraded stabilization algorithm.
• Dual-Axis Focus/Zoom Control: Achieve precise focus and zoom control with the RS 4 Pro's dual-axis joystick.
• Timelapse and Motionlapse: Create stunning time-lapse and motion-lapse sequences effortlessly with the RS 4 Pro's advanced features.
• Bluetooth Remote Control: Control your RS 4 Pro wirelessly from a distance using the included Bluetooth remote.
• Expanded Accessory Compatibility: Enjoy even more customization options with the RS 4 Pro's expanded accessory ecosystem.

The DJI RS 4 Pro is the perfect choice for those who demand the highest level of performance and versatility from their handheld gimbal stabilizer.

Take a Closer Look

2nd-Gen Native Vertical Shooting

The newly designed gimbal horizontal plate eliminates the need for additional accessories. Cinematographers can easily switch to vertical shooting.

Approx. 2.4x Battery Runtime, All-Scenario Solutions Extend runtime up to 29 hours with the RS BG70 High-Capacity Battery Grip. And choose from various handheld configurations with RS SDK protocol.	Supports Dual Focus & Zoom Motors With Remote Control Get precision focus and zoom simultaneously by installing two Focus Pro Motors. Pair with the Focus Pro Hand Unit and High-Bright Remote Monitor and get refined remote gimbal and focus control.

LiDAR Focusing: 76,800 Ranging Points Within 20 m Solo cinematographers can now experience more accurate, distant, and intelligent LiDAR autofocus. The next-gen ActiveTrack Pro can firmly lock on to a moving subject.	LiDAR & Transmission Interconnectivity With the Focus Pro LiDAR to DJI Transmission Cable Hub, RS 4 Pro can power LiDAR and the DJI Video Transmitter simultaneously, achieve LiDAR Waveform, and convenient control.

4.5kg (10lbs) Payload Capacity With a 20% Increase in Motor Torque

The carbon fiber axis arms are capable of accommodating mainstream mirrorless/cinema camera and lens setups. The gimbal provides greater power redundancy once balanced.

Camera Compatibility List

DJI RS 4 Pro Specs

Category	Spec	Value
Peripheral / Ports	Accessory Ports	RSA/NATO, 1/4"-20 Mounting Hole, Cold Shoe, USB-C (Video Transmission/LiDAR, RSS Camera Control, Focus Motor)
Battery (Grip)	Model	BG30-1950mAh-15.4V
	Type	LiPo 4S
	Capacity	1950 mAh
	Energy	30 Wh
	Max Runtime	13 h (static, balanced)
	Charging Time	~1.5 h (24W QC 2.0 / PD charger)
	Charging Temp	5°–40° C (41°–104° F)
Connections	Wireless	Bluetooth 5.1
	Port	USB-C
App Requirements	iOS	11.0+
	Android	8.0+
Languages (Touchscreen)	Supported	English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Performance	Tested Payload	4.5 kg (10 lbs)
	Max Controlled Speed	Pan/Tilt/Roll: 360°/s
	Mechanical Range	Pan: 360° continuous Roll: -95° to +240° Tilt: -112° to +214°
Mechanical & Electrical	Operating Frequency	2.400–2.4835 GHz
	Bluetooth TX Power	< 8 dBm
	Operating Temp	-20° to 45° C (-4° to 113° F)
Weight	Gimbal	1242 g (2.74 lbs)
	Grip	265 g (0.58 lbs)
	Tripod (Metal)	226 g (0.49 lbs)
	QR Plates	110 g (0.24 lbs)
Dimensions	Folded	271×283×75 mm (L×W×H)
	Unfolded	416×223×202 mm (L×W×H)
Ronin Image Transmitter	Ports	USB-C (Power/Comm), Mini HDMI, USB-C (RSS Control), Expansion Port, Cold Shoe
	Frequency	2.400–2.4835 GHz, 5.725–5.850 GHz
	Weight	126 g (0.27 lbs)
	Dimensions	82×63×24 mm
	TX Power (EIRP)	2.4 GHz: <25 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <25 dBm (FCC/SRRC), <14 dBm (CE)
	Battery Capacity	2970 mAh
	Charging	5V/2A, ~2.5 h
	Operating Time	~3.5 h
	Transmission Range	200 m (FCC/SRRC), 100 m (CE)
	Latency	60 ms
	Operating Current/Voltage	900 mA / 3.7 V
	Operating Temp	0°–45° C (32°–113° F)
